24V, 3A, 650kHz, Synchronous Step-Down Converter with PG, SS, and Forced CCM in SOT583 (1.6x2.1mm) Package
You have a basic account.A myMPS+ account is needed.Upgrade to myMPS+
Session Titefor popup
The MP2330C is a fully integrated high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. The MP2330C offers a very compact solution that achieves 3A of continuous output current with excellent load and line regulation over a wide input range. The MP2330C uses synchronous mode operation for higher efficiency over the output current load range.
Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation.
Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.
The MP2330C requires a minimal number of readily available, standard, external components and is available in a space-saving SOT583 package.
- Show more Show less
Log in to your account
Create New Account
Features & Benefits
- Wide 4.2V to 24V Operating Input Range
- 75mΩ/40mΩ Low RDS(ON) Internal Power MOSFETs
- 200µA Low IQ
- High-Efficiency Synchronous Mode Operation
- Fast Load Transient Response
- 650kHz Switching Frequency
- Forced PWM Operation
- Programmable Soft-Start Time
- Power Good (PG) Indication
- Over-Current Protection (OCP) and Hiccup
- Pre-Bias Start-Up
- Thermal Shutdown
- Available in a SOT583 (1.6mmx2.1mm) Package

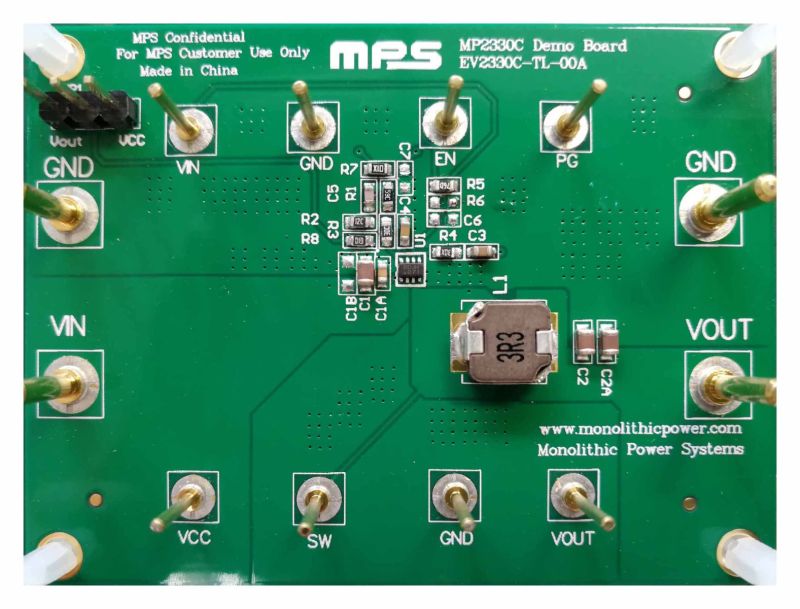

EV2330C-TL-00A Evaluation Kit High-Efficiency, 650kHz, 3A, 24V, Step-Down Converter Evaluation Board
The EV2330C-TL-00A evaluation board is designed to demonstrate the capabilities of MPS’s MP2330C, a fully integrated, high-frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve 3A of continuous output current over a wide input range, with excellent load and line regulation. The MP2330C has synchronous mode operation for higher efficiency over the output current-load range.
Constant-on-time control operation provides very fast transient response and easy loop design, as well as very tight output regulation.
Full protection features include SCP, OCP, UVP, and thermal shutdown.
The MP2330C requires a minimal number of readily available, standard external components, and is available in a space-saving SOT583 (1.6mmх2.1mm) package.
