Order- MP2141Q-18
MP2141Q-18
Session textval
Session Titefor popup
Description
The MP2141Q is a monolithic, step-down, switch-mode converter with built-in, internal power MOSFETs. The MP2141Q achieves 1.5A of continuous output currents from a 2.3V to 5.5V input voltage with excellent load and line regulation.
The constant-on-time (COT) control scheme provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.
The MP2141Q is ideal for a wide range of applications including high performance DSPs, wireless power, portable and mobile devices, and other low-power systems.

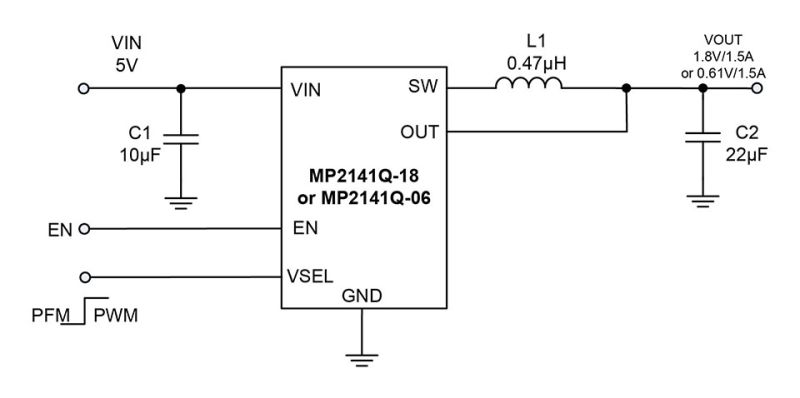

The MP2141Q requires a minimal number of readily available, standard, external components and is available in an ultra-small SOT563 package.
-
Show more
Show less
Features & Benefits
- PFM Quiescent Current: 20μA
- EN for Power Sequencing
- VSEL for PFM/PWM
- Wide 2.3V to 5.5V Operating Input Range
- Fixed Output Voltage: 0.61V/1.8V
- Up to 1.5A of Output Current
- 120mΩ and 80mΩ Internal Power MOSFET Switches
- Output Discharging
- Short-Circuit Protection (SCP) with Hiccup Mode
- Stable with Low ESR Output Ceramic Capacitors
- 100% Duty Cycle
- Available in a SOT563 Package
Active Part Numbers:
MP2141QGTF-18-Z MP2141QGTF-18-P
Part numbers ending in P and Z are the same parts. P and Z only indicates reel size.
