MEZS6-45V15ABLDCDriver

MEZS6-45V15ABLDCDriver

5V to 45V, Three-Phase, Brushless DC Motor Controller/Driver Board

Datasheet

Description

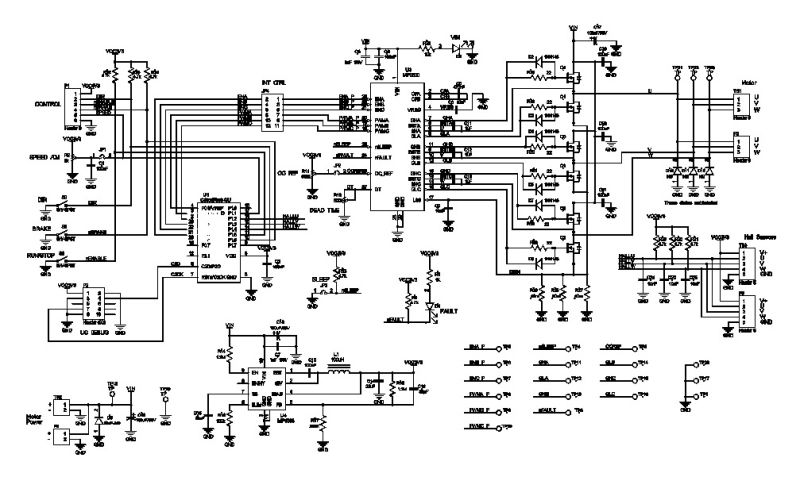

The MEZS6-45V15ABLDCDriver is a controller and driver for a three-phase brushless motor.

It operates from a supply voltage of up to 45V. It is configured to drive three half-bridges consisting of six N-channel power MOSFETs. The rotor position information is provided by the Hall sensors assembled in the motor. Motor speed and direction are controlled by an on-board microcontroller.

Features & Benefits

Wide 5V to 45V Input Voltage Range
Hall Sensor Inputs
Programmable OCP Threshold
Support 100% Duty Cycle Operation
OCP, OTP
Fault Indication Output

Active Part Numbers:

MEZS6-45V15ABLDCDriver

Buy direct from MPS

Standard Pricing

Quantity Price
1

$100.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.

SEE ALL BUYING OPTIONS

View distributor pricing and availability
