2.5A, 35V, Bipolar Stepper Motor Driver Solution Kit

Datasheet

Description

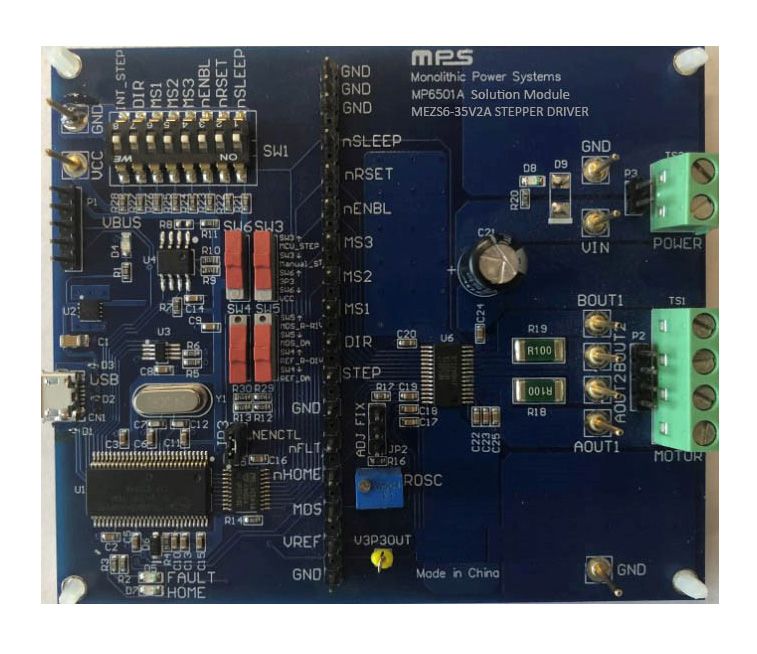

The MEZS6-35V2AStepperDriver is a stepper motor controller/driver board using the MP6501AGF, a stepper motor driver with a built-in micro-stepping translator. An on-board microcontroller can generate stepping control signals, and be controlled from a PC using a USB connection and Windows GUI program.

It operates from a supply voltage range of 8V to 35V and can deliver motor current up to 2.5A. It can drive a bipolar stepper motor in full- half-, quarter-, and eighth- step modes by setting the MS3, MS2, MS1. The input control signals and reference voltage for the MP6501AGF are applied through the connector or generated on board.

Features & Benefits

Wide 8V to 35VInputVoltageRange
Up to 2.5A Programmable Output Current
Full-, Half-, Quarter-, and Eighth-Step Modes
Adjustable Mixed Decay Ratio or Automatic Decay
OCP, OVP, and OTP
Control Signals Generated by On-Board USB Microcontroller or Supplied Externally

Active Part Numbers:

MEZS6-35V2AStepperDriver

Buy direct from MPS

Standard Pricing

Quantity Price
1

$100.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
