EVQ4430-L-00A

EVQ4430-L-00A

36V, 3.5A, Low-I_Q, Synchronous Step-Down Converter Evaluation Board

Datasheet

Description

The EVQ4430-L-00A evaluation board is designed to demonstrate the capabilities of the MP4430 and the MPQ4430. The MPQ4430 is a configurable-frequency (350kHz to 2.5MHz), synchronous, step-down switching regulator with integrated, internal high-side MOSFET (HS-FET) and low-side MOSFET (LS-FET). It provides up to 3.5A of highly efficient output current (I_OUT) with current mode control for fast loop response.

The MPQ4430 employs advanced asynchronous modulation (AAM) mode to achieve high efficiency under light-load conditions by scaling down the switching frequency (f_SW). This reduces the switching and gate driving losses.

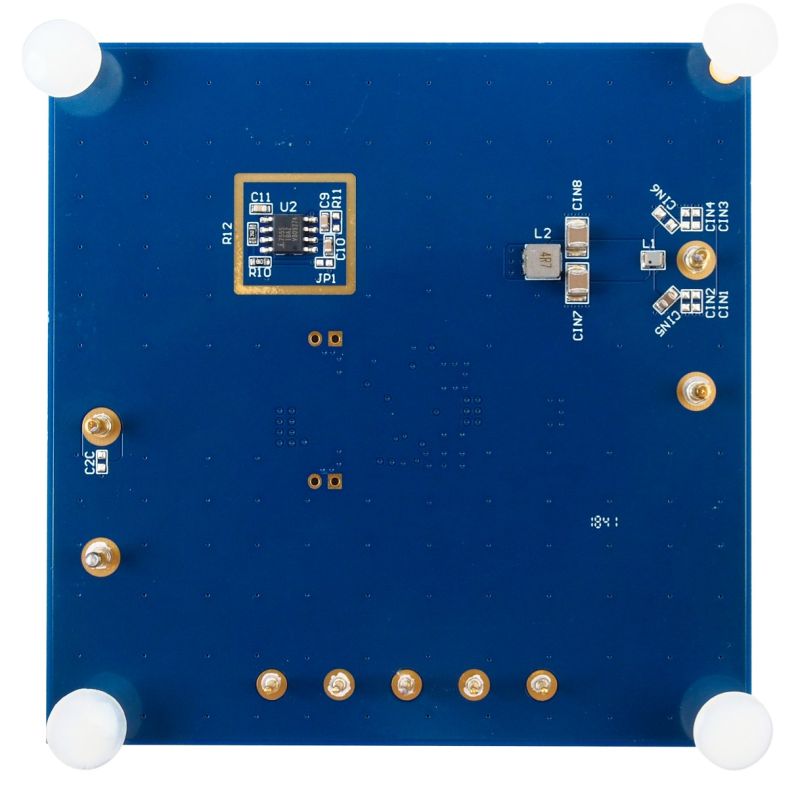

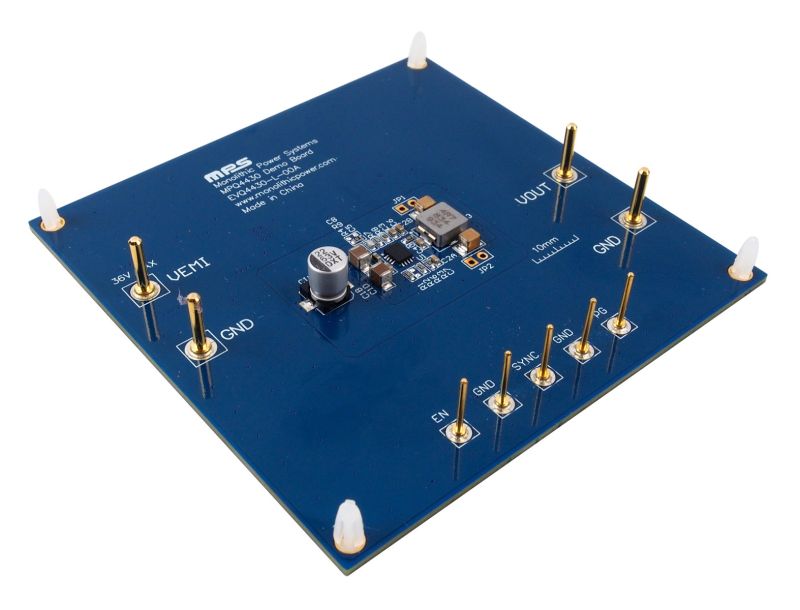

The EVQ4430-L-00A is a fully assembled and tested evaluation board. It generates an output voltage (V_OUT) of 5V at load currents up to 3.5A across a wide 5V to 36V input voltage (V_IN) range. The MPQ4430 is available in a QFN-16 (3mmx4mm) package.

Product Evaluated

MPQ4430

36V, 3.5A, Low Iq Synchronous Step-Down Converter AEC-Q100 Qualified

Features & Benefits

Wide 5V to 36V Operating Input Voltage (V_IN) Range
5A Continuous Output Current (I_OUT)
1μA Low Shutdown Current (I_SD)
10μA Sleep Mode Quiescent Current (I_Q)
90mΩ and 40mΩ Internal Power MOSFETs
350kHz to 2.5MHz Configurable Switching Frequency (f_SW)
Synchronized External Clock
Selectable In-Phase or 180° Out-of-Phase
Power Good (PG) Indicator
Configurable Soft-Start Time (t_SS)
80ns Minimum On Time (t_{ON_MIN})
Selectable Forced Continuous Conduction Mode (FCCM) and Advanced Asynchronous Modulation (AAM) Mode
Low-Dropout (LDO) Mode
Over-Current Protection (OCP) with Valley Current Detection and Hiccup Mode
Thermal Shutdown
Available in a QFN-16 (3mmx4mm) Package
Available in a Wettable Flank Package
Available in AEC-Q100 Grade-1

Active Part Numbers:

EVQ4430-L-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
