EVQ20056-G-00A

EVQ20056-G-00A

Fast Transient Response, Ultra-Small 250mA Linear Regulator EV Board for QFN8(2x2mm) package type

Datasheet

Description

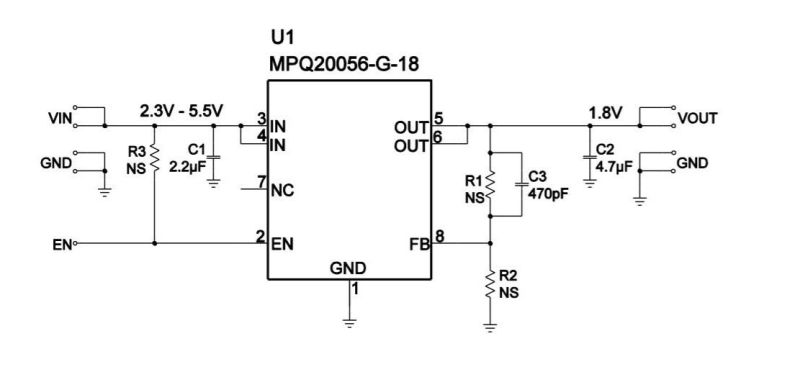

The EVQ20056-G-00A evaluation board demonstrates the performance of MPQ20056-18, a low noise, low dropout and high PSRR linear regulator. It operates from a 2.5V to 5.5V input voltage and the output voltage is preset internally at 1.8V.

The EVQ20056-G-00A can supply up to 250mA of load current, and features current limiting, over temperature protection.

An internal PMOS pass element is used to allow a low 150μA ground current, making the MPQ20056-G suitable for battery-power devices.

EVQ20056-G-00A is the Evaluation board for MPQ20056 QFN8(2x2mm) package type

Product Evaluated

Features & Benefits

Up to 250mA Output Current
Low 100mV Dropout at 250mA
Fast Transient Response
70dB PSRR at 1kHz
13μV_RMS Low Noise Output
Fixed output voltage 1.8V
Current Limit and Thermal Protection

Active Part Numbers:

EVQ20056-G-00A
