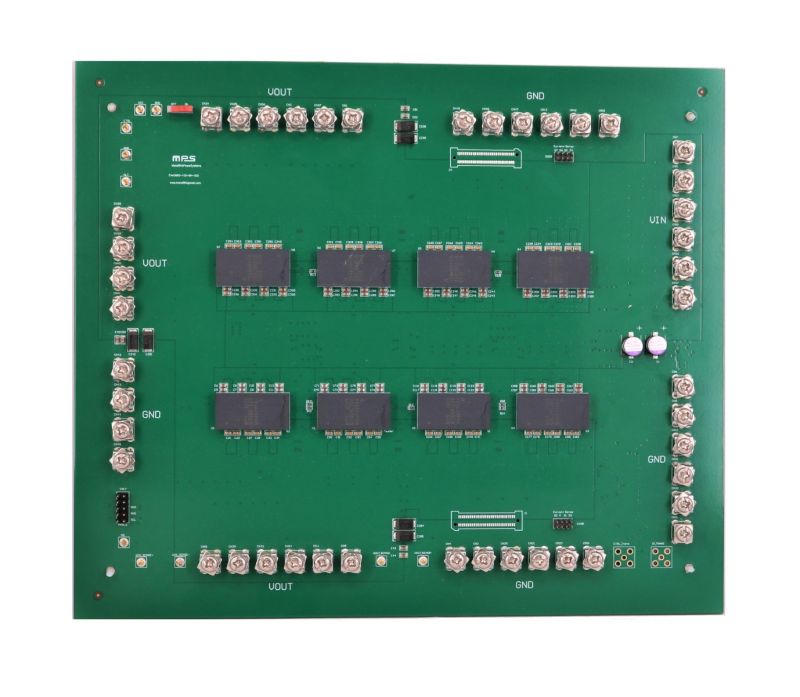

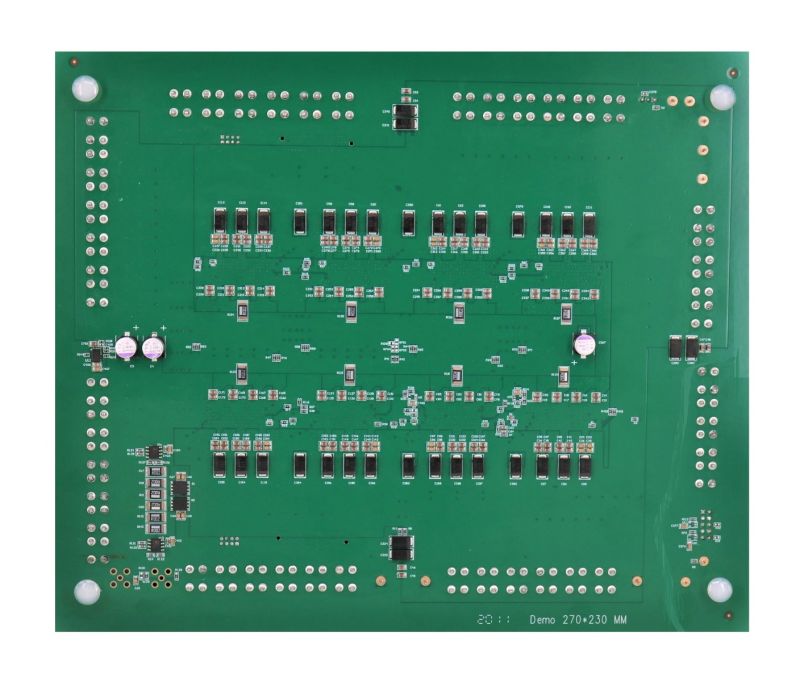

The EVM3695-100-BH-00D is an evaluation board designed to demonstrate the capabilities of the MPM3695-100, a 100A, scalable, fully integrated digital power module. The MPM3695-100 offers a complete power solution that achieves up to 100A of output current (IOUT), with excellent load and line regulation across a wide input voltage (VIN) range. The device operates at a high efficiency across a wide load range, and can be paralleled to deliver up to 800A of current.
The EVM3695-100-BH-00D/E evaluation board series provides two stuffing options that accommodate six or eight MPM3695-100 power modules, which provide up to 600A and 800A of IOUT, respectively. See the Performance Summary section for more details on the performance of the EVM3695-100-BH-00D/E series.
The MPM3695-100 is available in a BGA (15mmx30mmx5.18mm) package.
