16V, 50A, High-Efficiency, Synchronous Step-Down Module Evaluation Board

Datasheet

Description

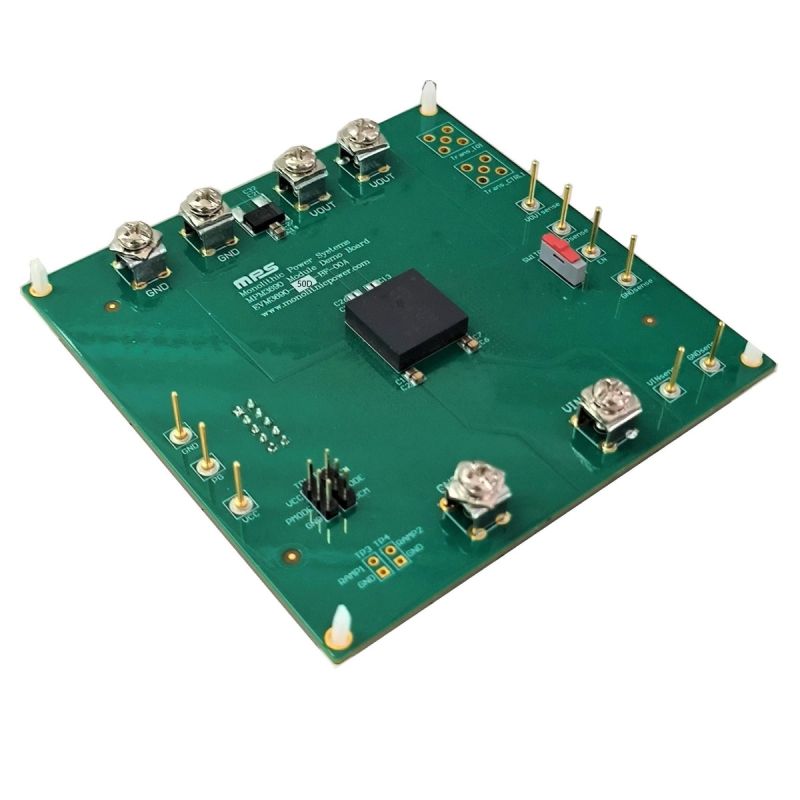

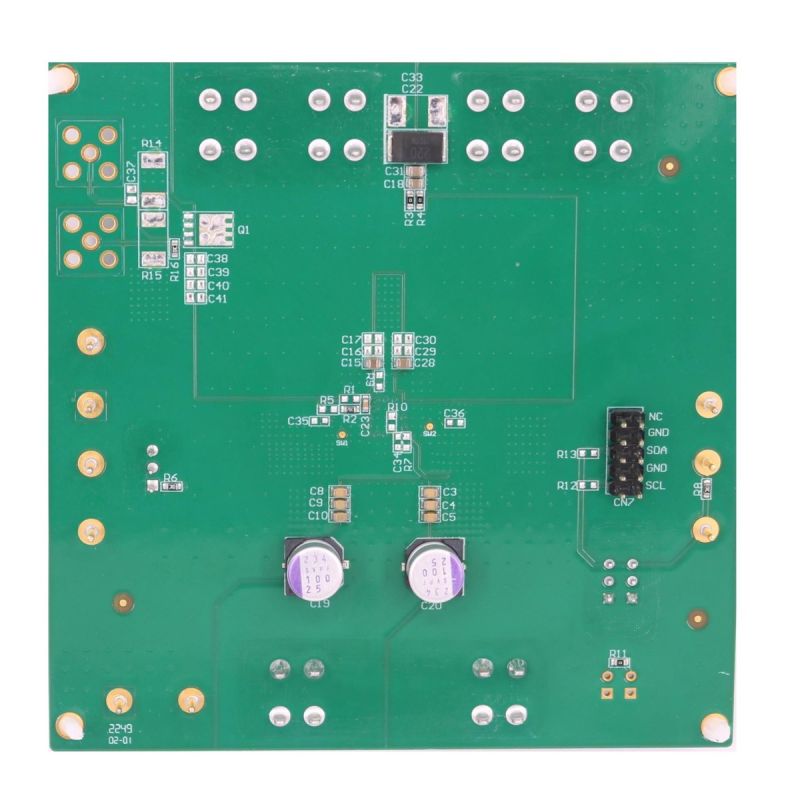

The EVM3690-50D-BF-00A evaluation board is designed to demonstrate the capabilities of the MPM3690-50D, a fully integrated, high-efficiency, synchronous, 50A output current (I_OUT), step-down power module with a PMBus interface.

The MPM3690-50D adopts internally compensated constant-on-time (COT) control to provide fast transient response and ease loop stabilization. Refer to the MPM3690-50D datasheet for more detailed information.

It is recommended to read the datasheet for the MPM3690-50D prior to making any changes to the EVM3690-50D-BF-00A.

Product Evaluated

Features & Benefits

3V to 16V Input Voltage (V_IN) Range with External 3.3V V_CC Bias
4V to 16V V_IN Range with Internal V_CC Bias
0.5V to 3.6V Output Voltage (V_OUT) Range
50A Continuous Current for Up to 1.8V Output
V_OUT Remote Sense
±1% Reference Voltage Accuracy (-40°C to +125°C)
PMBus 1.3 Compliant
Telemetry Read Back Including V_IN, V_OUT, Output Current (I_OUT), Temperature, and Faults

Configurable via the PMBus:

V_OUT
Soft-Start Time (t_SS)
Over-Current (OC), Over-Temperature (OT), Over-Voltage (OV), Under-Voltage (UV), and Under-Voltage Lockout (UVLO) Limits
Pulse-Width Modulation (PWM) Mode
Switching Frequency (f_SW)

Available in a BGA (16mmx16mmx5.18mm) Package

Active Part Numbers:

EVM3690-50D-BF-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$45.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

MPS I2C Communication kit required

Yes, Add EVKT-USBI2C-02 $50.00

No, I already have one

Quantity

100 Max per Company.
Limited Inventory to support product development.
