EVM3632S-PQ-00A

EVM3632S-PQ-00A

NOT RECOMMENDED FOR NEW DESIGNS

High-Frequency 18V/3A DC/DC Regulator With Integrated Inductor Evaluation Board

ALTERNATIVE PART

NRFND Datasheet

EVM3632S-PQ-00A continues to be in production for existing customers. Please consider this alternative for new designs:

EVM3632S-PQ-01A

EVM3632S-PQ-01A

High-Frequency, 18V, 3A, DC/DC Regulator with Integrated Inductor Evaluation Board

Features & Benefits

Wide 4V to 18V Operating Input Voltage (V_IN) Range
Internally Fixed Soft-Start Time (t_SS)
0.5% Accuracy Output Voltage (V_OUT)
Up to 3A of Continuous Output Current (I_OUT)
2.2MHz Switching Frequency (f_SW)
Forced Continuous Conduction Mode (FCCM)
Power Good (PG) Indicator
Over-Current Protection (OCP) with Hiccup Mode
Output Over-Voltage Protection (OVP)
Fast Transient Response
Available in an ECLGA-10 (3mmx3mmx1.45mm) Package

… and many more!

Description

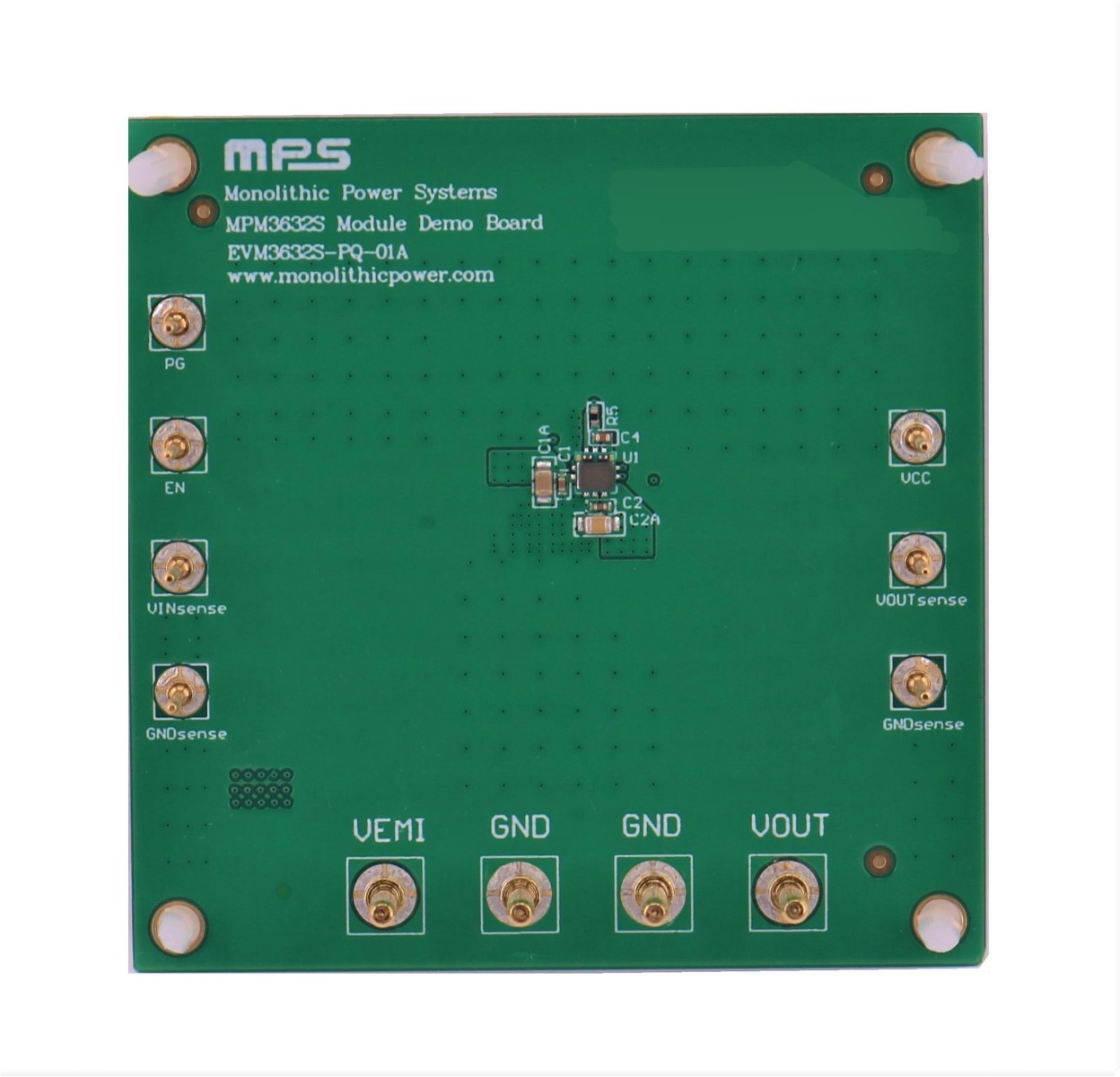

EVM3632S-PQ-00A evaluation board is based on MPS’S MPM3632S. The MPM3632S is a synchronous rectified, step-down Mini-Module regulator with built-in power MOSFETs, inductor and two capacitors. It offers a very compact solution with only input and output capacitors to achieve a 3A continuous output current with excellent load and line regulation over a wide input supply range. The MPM3632S operates in fixed 2.2MHz switching frequency with Constant-On-Time control which provides fast load transient response.

Full protection features include output over voltage protection, over-current protection and thermal shut down.

MPM3632S eliminates design and manufacturing risks while dramatically improving time to market.

The MPM3632S is available in a space-saving LGA10 (3mmx3mmx1.45mm) package.

Features & Benefits

Complete Switch Mode Power Supply
Wide 4V-to-18V Operation Input Range
36mΩ/18mΩ Low RDS(ON) Internal Power MOSFETs
0.5% Accuracy Output Voltage
3A Continuous Output Current
2.2MHz Switching Frequency
Forced CCM Mode
Power Good Indicator
500μA Low Quiescent Current
Hiccup OCP Protection
Programmable Soft Start (Metal option)
Output Over Voltage Protection
Fast Transient Response
Available in LGA3x3x1.45mm Package
