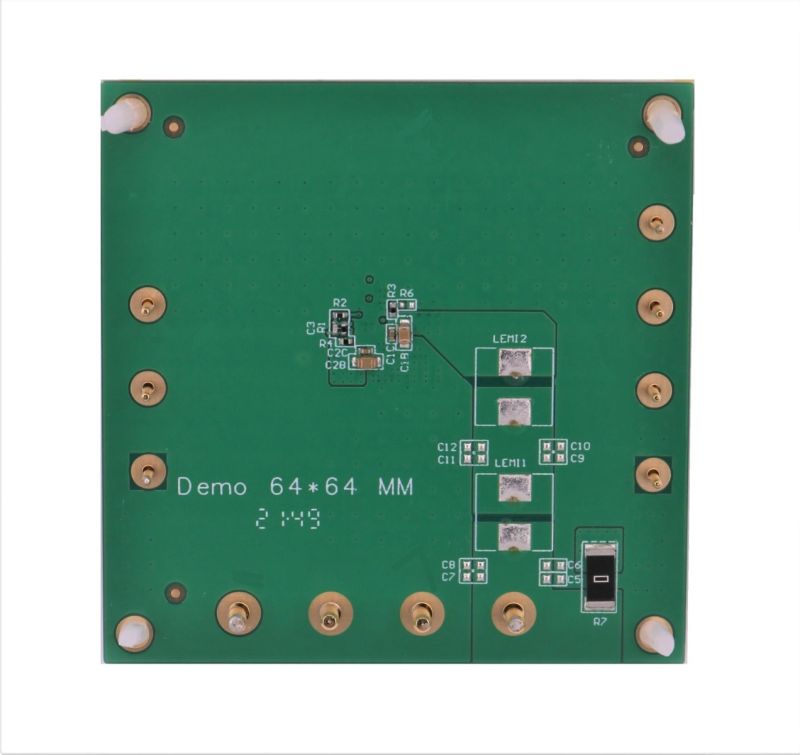

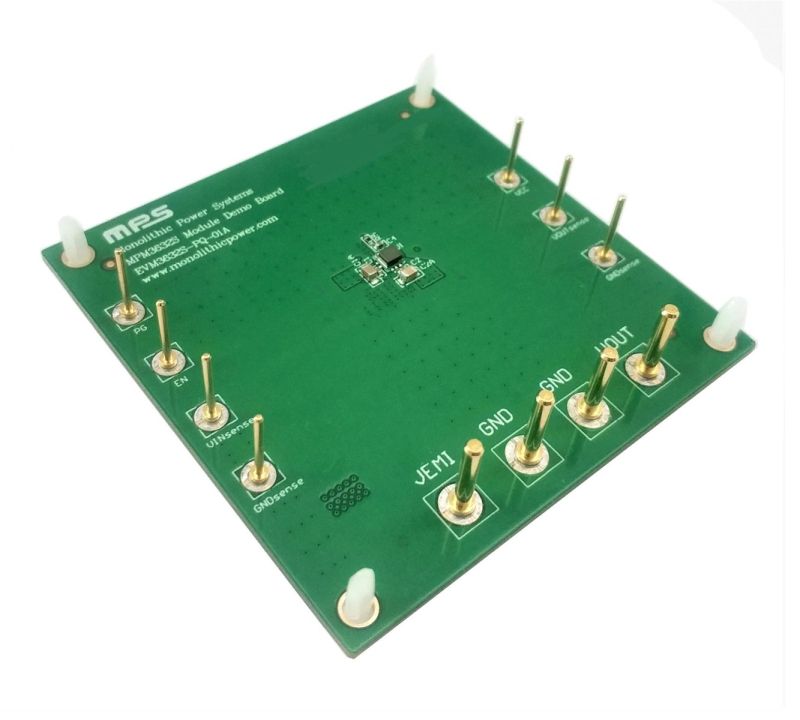

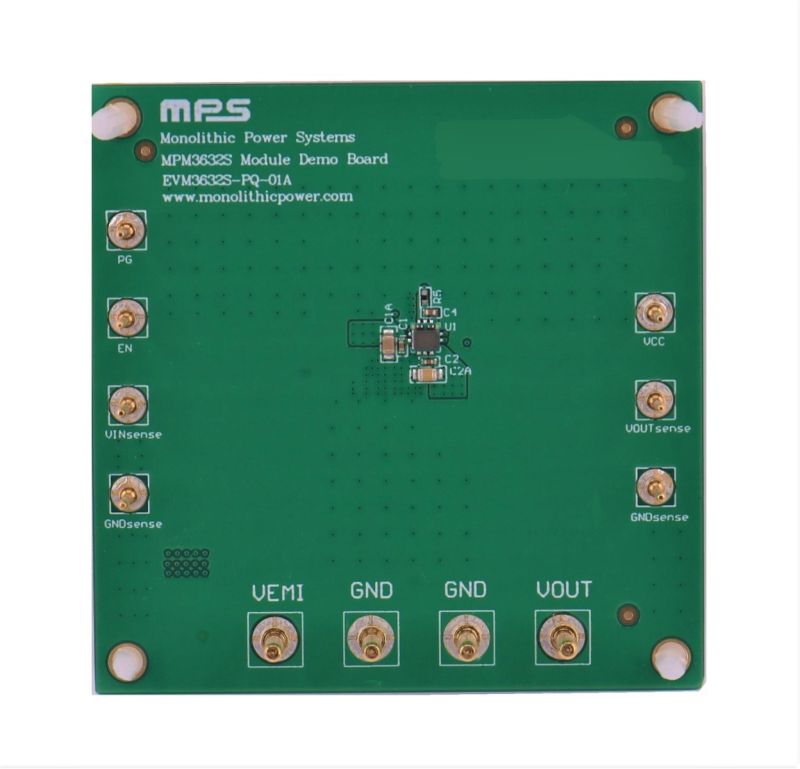

The EVM3632S-PQ-01A is an evaluation board designed to demonstrate the capabilities of the MPM3632S, a fully integrated, high-frequency, synchronous, rectified, step-down mini-module regulator with an internal inductor.
The MPM3632S offers a compact solution with feedback resistors and input/output capacitors to achieve up to 3A of continuous output current (IOUT), with excellent load and line regulation across a wide input voltage (VIN) range.
The MPM3632S operates at a fixed 2.2MHz switching frequency (fSW) with constant-on-time (COT) control to provide fast load transient response.
Full protection features include output over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown. The MPM3632S eliminates design and manufacturing risks while dramatically improving time to market.
The MPM3632S is available in a space-saving LGA-10 (3mmx3mmx1.45mm) package.
