EV8008-V-00A

Fully Integrated IEEE 802.3af/at-Compliant PoE PD Interface with Peak Current Mode Flyback Controller Evaluation Board

Datasheet

Shopping Cart

Order

Overview
Technical Forum
Quality
Order

EV8008-V-00A

EV8008-V-00A

Fully Integrated IEEE 802.3af/at-Compliant PoE PD Interface with Peak Current Mode Flyback Controller Evaluation Board

Datasheet

Description

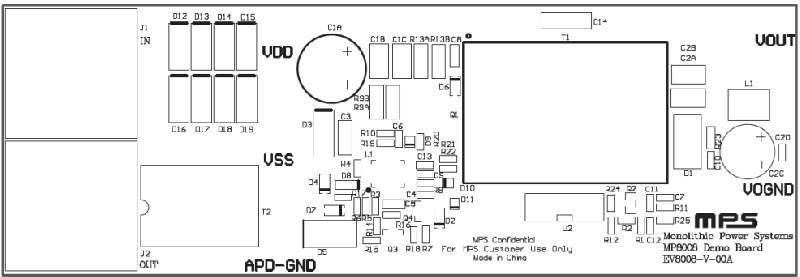

The EV8008-V-00A evaluation board is designed to demonstrate the capability of the MP8008, which is an integrated IEEE 802.3af/at PoE-compliant powered device (PD) power supply converter. It includes a PD interface and peak current mode flyback controller.

The PD interface has all the functions of IEEE 802.3af/at, and sets 120mA inrush current limit, 840mA operation current limit as well as a 100V hot-swap MOSFET. The flyback PWM controller can drive an external MOSFET capable of handling more than 10A of current. The PSM function improves the efficiency in light-load conditions.

The MP8008 flyback features overload, short output, and over=voltage protections. The MP8008 can support a front-end solution for PoE-PD application, and is available in a QFN-28 (4mmx5mm) package.

Product Evaluated

Fully Integrated, 802.3af/at-Compliant, PoE PD Interface with a Peak-Current-Mode Flyback Controller

Features & Benefits

Compatible with 802.3af/at Specifications
100V, 0.48? PD Integrated Pass Switch
120mA PD Inrush Current
840mA PD Operation Current Limit
Auxiliary Adaptor O-Ring Power Supply
PD Power Good and Type-2 PSE Indicator
1A, 12V Flyback MOSFET Gate Driver
Pulse-Skip Operation in Light-Load Conditions
Programmable Switching Frequency (30kHz to 400kHz)
Frequency Synchronizing from 80kHz to 400kHz
Cycle-by-Cycle Current Limiting
Overload, Short-Circuit, Over-Voltage, and Thermal Protections
Available in a QFN-28 (4mmx5mm) Package

Active Part Numbers:

EV8008-V-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.

Technical Forum

Questions answered by MPS engineers in 24h

Mp8008 vin voltage

hi. I have a question while looking at the EV8008 document. vin = Flyback controller input supply. VDD : 37~57V / VIN : 0~35V image EV8008, transform....

DC-DC POWER CONVERTERS

Latest activity 3 months ago

MP8008 - adjust for 5V output

Hello, I’m trying to adjust the EV8008’s reference circuit so that the output is 5V. I am using the https://www.we-online.com/catalog/data...

DC-DC POWER CONVERTERS

Latest activity a year ago

MP8008 PoE Feedback Circuit reference voltage

...design for the 2.5 V reference voltage: according to the footprint of the MP8008 evaluation board (EV8008), it seems like the pin configuration of ...

DC-DC POWER CONVERTERS

Latest activity a year ago
