0.25W, Regulated, 3kV_DC Isolated DC/DC Converter Evaluation Board

Shopping Cart

Order

Overview
Technical Forum
Quality
Order

EV Kits and EV Boards
EV02W0303A-3-Y-00A

EV02W0303A-3-Y-00A

0.25W, Regulated, 3kV_DC Isolated DC/DC Converter Evaluation Board

Description

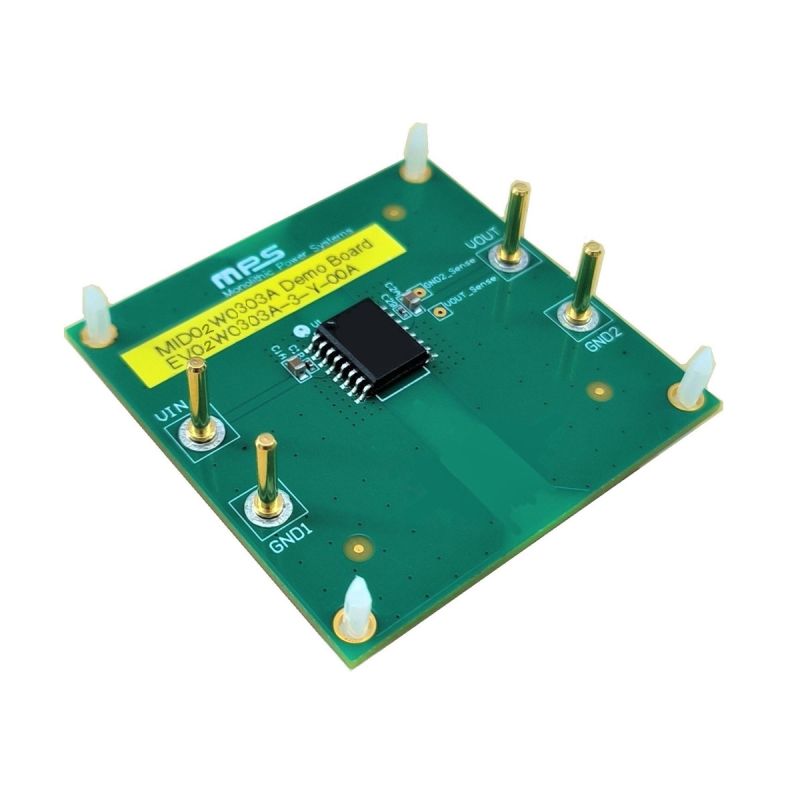

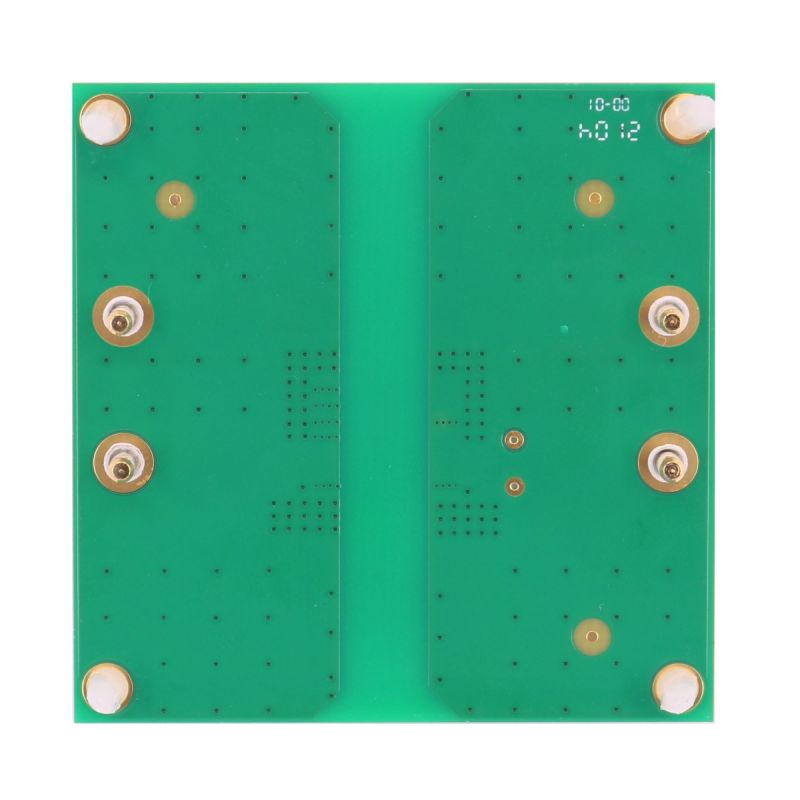

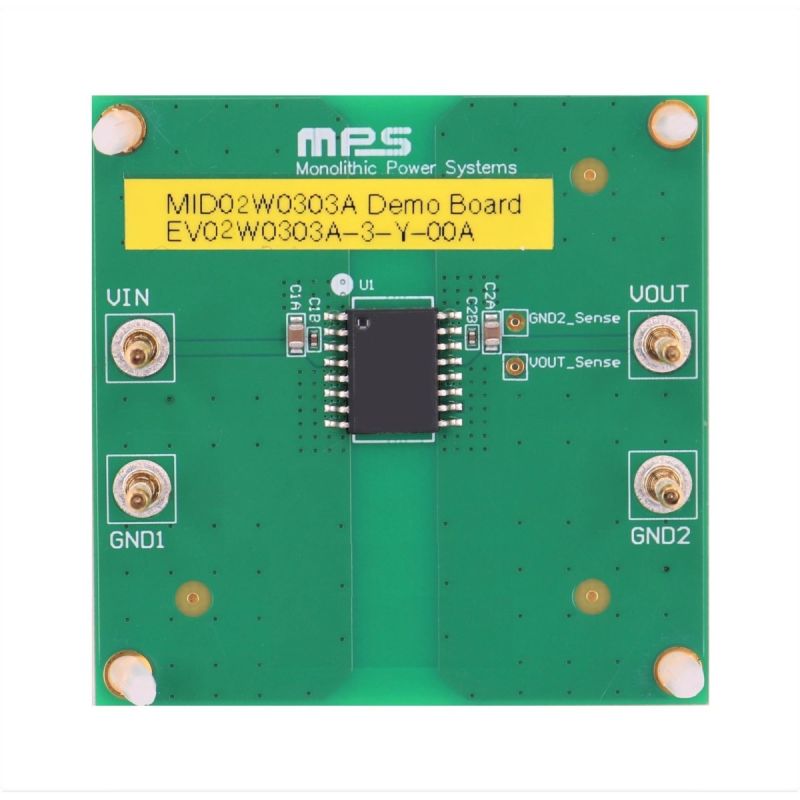

The EV02W0303A-3-Y-00A is an evaluation board designed to demonstrate the capabilities of the MID02W0303A-3, a regulated, isolated DC/DC converter. The MID02W0303A-3 supports a 3kV_DC isolation voltage.

The MID02W0303A-3 integrates a power MOSFET, transformer, and feedback circuit all in one chip. The DC/DC converter provides a compact solution with reliable operation compared to traditional isolated power modules.

It is recommended to read the datasheet for the MID02W0303A prior to making any changes to the EV02W0303A-3-Y-00A.

Product Evaluated

MID02W0303AGY-3R

0.25W, Regulated, 3kV_DC Isolated DC/DC Converter

Features & Benefits

3V to 3.6V Operating Input Voltage (V_IN) Range
3kV_DC Isolation Voltage
Up to 0.25W Output Power (P_OUT)
52% Max Efficiency at Full Loads
0.2% Load Regulation
0.1% Line Regulation
Excellent Transient Response
Continuous Short-Circuit Protection (SCP) with Hiccup Mode
Over-Temperature Protection (OTP)
Meets CISPR32 Class B Emissions
-40°C to +125°C Operating Temperature Range
Available in an SOICW-16 Package
