AX5688

AX5688

2-Channel, Digital-Input Class-D Audio Controller

Datasheet

Description

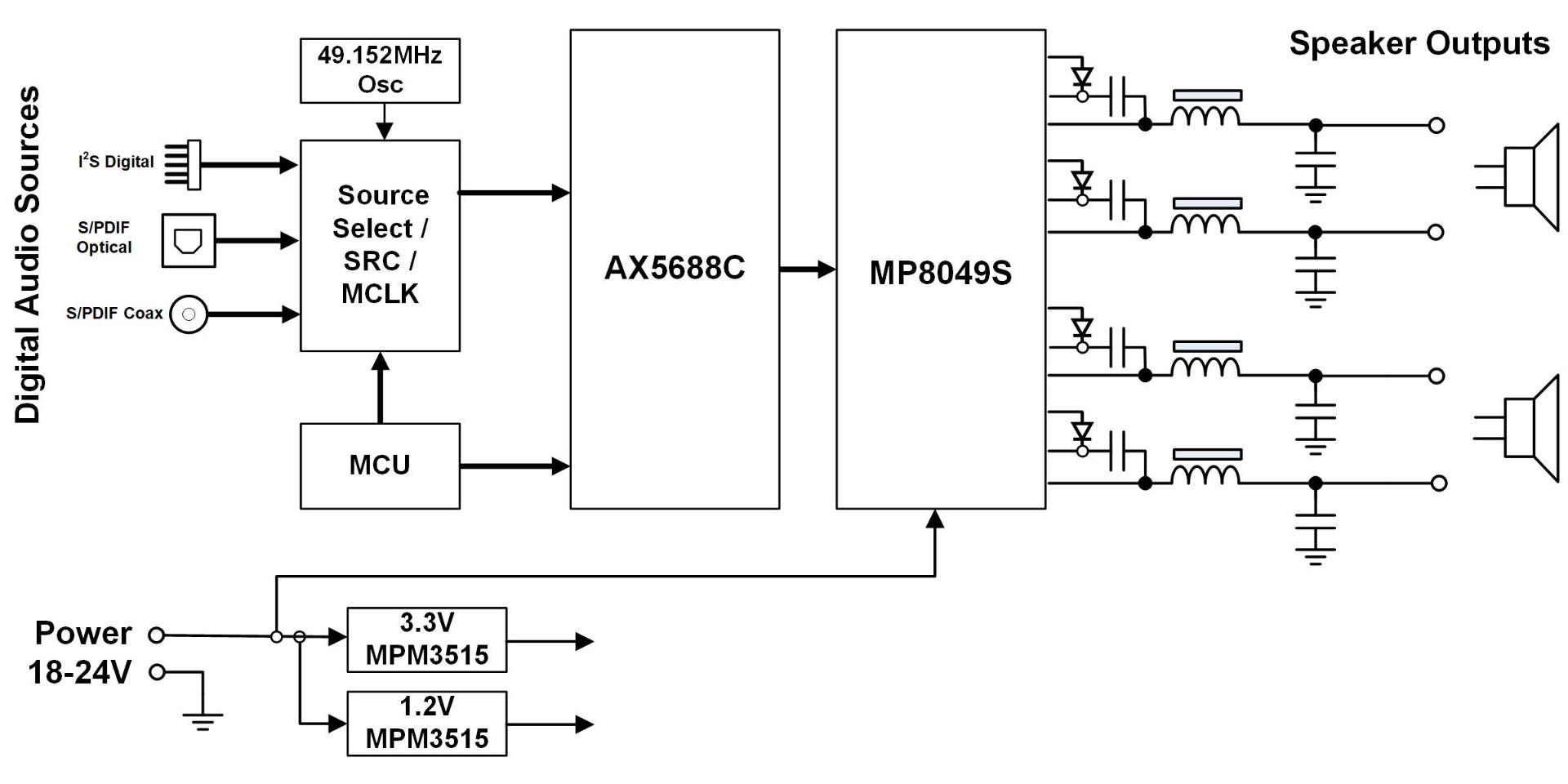

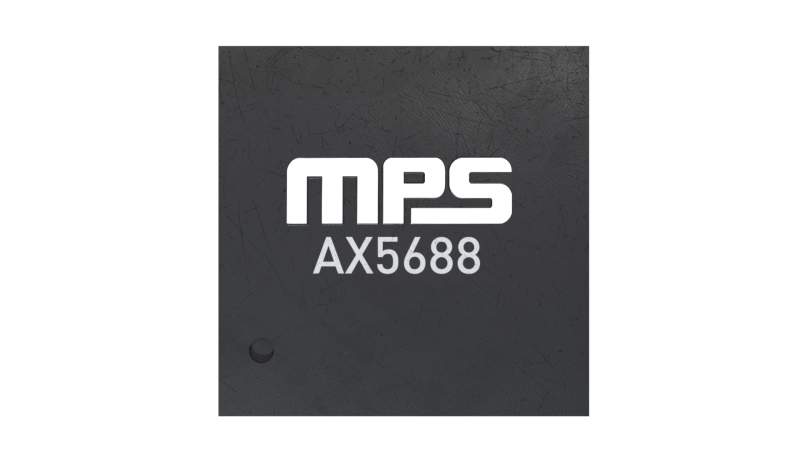

The AX5688 is a 2-channel bridge-tied load (BTL) or 1-channel parallel bridge-tied load (PBTL) audio controller IC with digital inputs, integrated low-latency analog-to-digital converters (ADCs), and CMOS-level pulse-width modulation (PWM) outputs. It enables high-order digital control loops with post-filter feedback for low power consumption and exceptional audio performance. It is available in a QFN-64 (9mmx9mm) package.

Configurations:

2x BTL
1x PBTL

Features & Benefits

4 Flexible, Differential Low-Latency Analog-to-Digital Converters (ADCs)
8 Configurable, Digital Control Loop Filter Slices
4 CMOS-Level Pulse-Width Modluation (PWM) Outputs
2x Bridge-Tied Load (BTL) Channels or 1x 4-Phase Parallel Bridge-Tied Load (PBTL) Channel
Feedback Is Taken after the Output Filter to Reduce Distortion
Multiple ADCs Can Be Placed in Parallel for Higher Performance
Configurable Interconnections between Slices and ADCs for Versatility and Multiple Input, Multiple Output (MIMO) Control
I²C and SPI Control Interface with Selectable Address for Multi-Chip Systems

Applications:

Active Loudspeakers (Party Boxes, Monitor Speakers)
Streaming Audio Amplifier Solutions
Subwoofers
Professional Audio Solutions
Thermally Sensitive Audio Solutions

Active Part Numbers:

AX5688GRK-Z AX5688GRK-P

Meaning of P & Z
