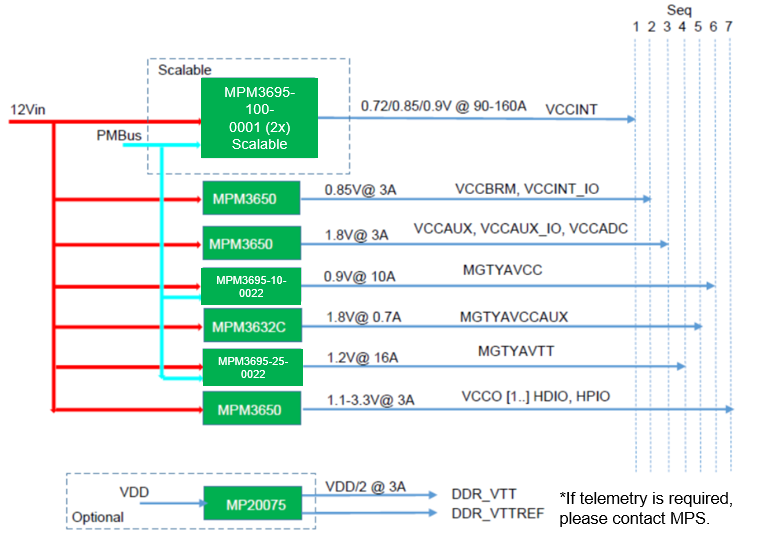

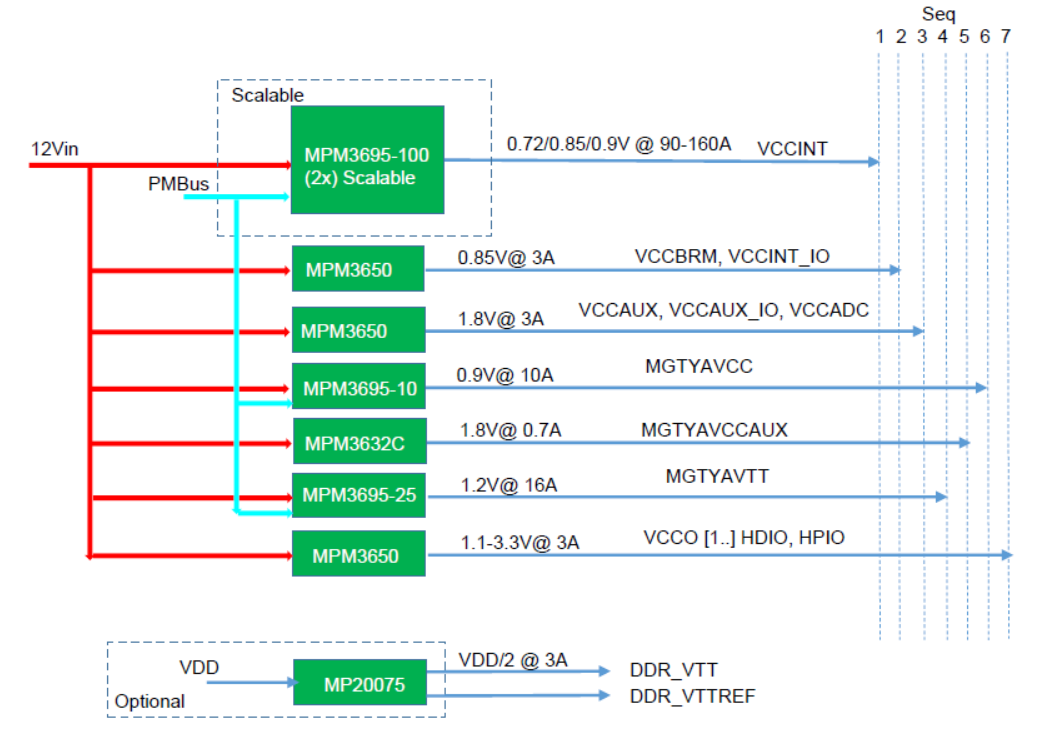

VU27P, VU29P UltraScale+ Extended Portfolio Smallest Size Power Management Reference Design

REFERENCE DESIGN

For more information on reference designs

Contact Us

Response within 2 business days

AMD Xilinx part numbers:

  • XCVU27P
  • XCVU29P

MPS Products Used

Part Number Quantity Description
MPM3695-100-0001

1 for 90A;

2 for 160A

100A, Scalable, and Fully Integrated DC/DC Power Module with a PMBus interface
MPM3695-25-0022 1 16V, 20A, Scalable DC/DC Power Module with PMBus
MPM3695-10-0022 1 16V, 10A, Scalable, Ultra-Thin DC/DC Power Module with PMBus
MPM3632C 1 18V Input, 3A Module, Synchronous, Forced CCM, Step-Down Converter with Integrated Inductor
MPM3650 3 1.2MHz Synchronous 2.75 - 17V, 5A Ultra-Thin Power Module
MP20075 1 3A, DDR Termination Regulator
