TBMA102-Q-RD-01A

TBMA102-Q-RD-01A

Round Evaluation Board for the MA102

Datasheet

Description

The TBMA102-Q-RD-01A is the round evaluation board for the MA102 MagAlpha magnetic position sensor. This configuration is used for end-of-shaft sensing.

It requires the EVKT-MACOM communication kit and the Macom App Software to evaluate MagAlpha functionality and performance with the set-up, such as noise level, refresh rate, start-up time, and magnetic field dependence.

In addition to this round (RD) evaluation board, there is a long format (LT) version, in which the sensor is mounted on the edge of the board and can therefore be used in both side-shaft and end-of-shaft configurations.

Features & Benefits

MA102 Round Evaluation Board
Requires the Communication Kit and Software Below

Active Part Numbers:

TBMA102-Q-RD-01A

Evaluation Tools

Macom App Software Evaluation Kit Windows Desktop Application + Drivers for the MagAlpha Communication Kit.

Windows Desktop Application + Drivers for the MagAlpha Communication Kit. Offers a graphical visualization of the angle reading and a quick and easy way to configure the sensor. Requires MagAlpha Communication Kit and a sensor front-end board.

Hardware Requirements

MagAlpha Communication Kit (EVKT-MACOM)

Sensor Board (TBMAxxx-Q-RD, TBMAxxx-Q-LT or EVKTxxx-KNOB)

User Instructions

MACOM Communication Kit User Guide

MagAlpha Communication Kit to Connect to Sensor Test Boards (TMBA) and Rotary Knob Kit, Requires Macom App Software

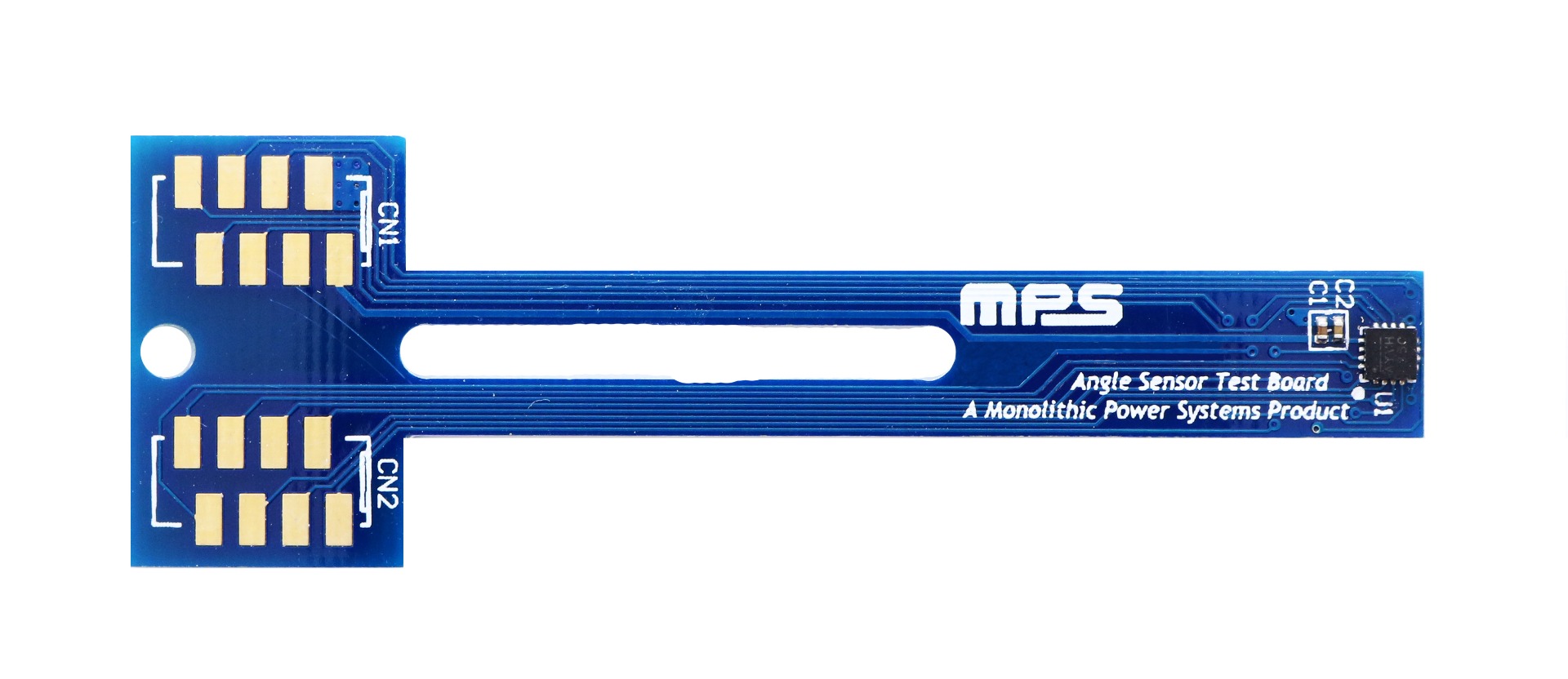

TBMA102-Q-LT-01A

Long Evaluation Board for the MA102

Motor Commutation Angle Sensor with UVW Multi-Pole Pair Emulation

Design Resources

Application Note

Using MagAlpha™ Devices to Sense BLDC Rotor Position

Application Note

Using the MagAlpha in Off-Axis Mounting

Application Note

Using MagAlpha™ Devices to Replace Optical Encoders

Application Note

Using the MagAlpha Serial Interface Advanced Features

Application Note

Selecting the Right Magnet for the MagAlpha in End-of-Shaft Mounting

Application Note

Linearity in side-shaft configuration: what should one care about?

MagAlpha MACOM App Tutorial

mCar Angle Sensors

Unboxing Contactless Rotary Sensor and Encoder MagAlpha Eval Kit

MPS High Accuracy, Ultra-Fast, Angular Position Sensor

MagAlpha Position Sensors

Using MagAlpha Rotary Magnetic Sensors in Side Shaft Mode

MagAlpha Magnetic Angle Sensor Family

MA102/MA302: 12-Bit, Compact Angle Sensors for BLDC Motor Commutation

Buy direct from MPS

Quantity Price
1

$10.00 /unit

In stock

ARRIVES 3-4 BUSINESS DAYS.
SHIPPING ONLY $5 PER ORDER.

Quantity

100 Max per Company.
Limited Inventory to support product development.
