Long Evaluation Board for the MA102
You have a basic account.A myMPS+ account is needed.Upgrade to myMPS+
Session Titefor popup

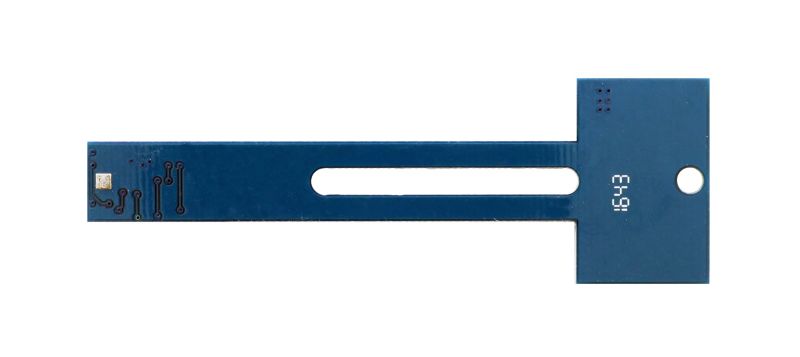

The TBMA102-Q-LT-01A is the long evaluation board for the MA102 MagAlpha magnetic position sensor. The sensor is mounted on the edge of the board, and can therefore be used in both side-shaft and end-of-shaft configurations.
It requires the EVKT-MACOM communication kit and the Macom App Software to evaluate MagAlpha functionality and performance with the set-up, such as noise level, refresh rate, start-up time, and magnetic field dependence.
In addition to this long (LT) evaluation board, there is a round format (RD) version, in which the sensor is mounted in the center of the board for end-of-shaft configurations.
- Show more Show less
Log in to your account
Create New Account
Features & Benefits
- MA102 Long Evaluation Board
- Requires the Communication Kit and Software Below
Active Part Numbers:
Macom App Software Evaluation Kit Windows Desktop Application + Drivers for the MagAlpha Communication Kit.
Windows Desktop Application + Drivers for the MagAlpha Communication Kit. Offers a graphical visualization of the angle reading and a quick and easy way to configure the sensor. Requires MagAlpha Communication Kit and a sensor front-end board.
MagAlpha Communication Kit to Connect to Sensor Test Boards (TMBA) and Rotary Knob Kit, Requires Macom App Software
Round Evaluation Board for the MA102
Motor Commutation Angle Sensor with UVW Multi-Pole Pair Emulation
