MPS Power Manager

MPS Power Manager

V2.0.35. Parts Supported: MP5990, MP5024, MPQ8785, MPQ2946, MPQ8655, MPQ2967, MP2926, MPQ29125, MP2891, etc.

Description

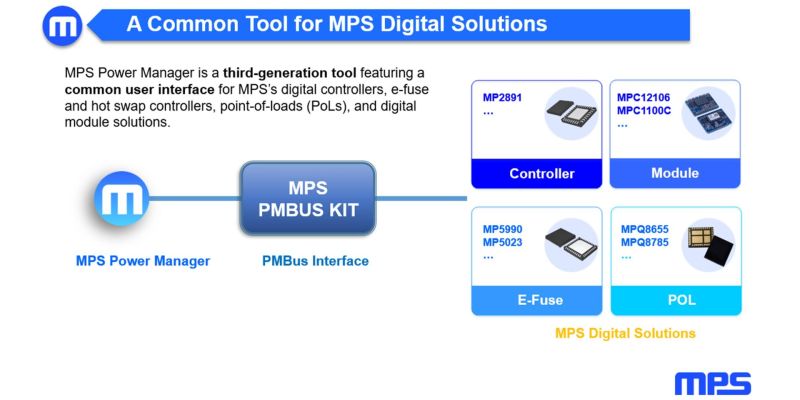

The MPS Power Manager is a graphical user interface (GUI) supported by MPS that configures and monitors multiple MPS digital power solutions using an I²C Interface. This GUI is an intuitive tool that can be used with MPS evaluation kits and helps users to configure settings, solutions, evaluation, as well as the testing phases of your design.

Hardware and software requirements include:

USB-to-I²C Communication Device (EVKT-USBI2C-02)
PC Running Windows 10 or Later
.Net Framework 4.6 or Later
2GB of Free Random Access Memory (RAM)
Any Modern CPU
Disk Space: 2GB
Monitor Resolution: 1024x768

Features & Benefits

Supports PMBus Open Standard Protocol
Common Commands Such as Setting the Output, Switching Frequency (f_SW), Protections, etc.
Provides Tips for the Parameter Configuration of the Digital Power Solution
Monitors Real-Time Data and Displayed Values by the GUI, Including:
- Input Voltage (V_IN), Input Current (I_IN), and Input Power (P_IN)
- Output Voltage (V_OUT), Output Current (I_OUT), and Output Power (P_OUT)
- Phase Current
- Temperature
- Warnings and Faults
Waveforms of the Main Signals
Configures MPS Devices in Offline Mode (with No Hardware Present):
- Preset and Review Every Function
- Voltage Regulator (VR) Behavior Simulation
- Generates the Configuration Code File
Controls Test Equipment (e.g. E-Loads)
Allows the User to Access the Most Recently Configured Parameters through the Log Panel
Upgradable via the Internet
