MP5514

MP5514

Wide 2.7V to 18V V_IN, 5A, High-Efficiency, Bidirectional Power Backup Manager with Hot Swap, I²C, ADC, and Capacitor Health Test

Datasheet

Description

The MP5514 is an input power conditioning power management IC (PMIC) designed for enterprise solid-state drives (SSDs), non-volatile dual-inline memory modules (NVDIMMs), and other backup system applications. The device features input current limiting and reverse current blocking. It also integrates an MPS-patented, high-efficiency, bidirectional buck-boost converter with a single inductor for energy storage and system power backup during an input power failure.

The MP5514 also provides an I²C interface and analog-to-digital converter (ADC). Users can set the input current limit (I_{IN_LIMIT}) and slew rate, and can perform capacitor health tests via the I²C. The MP5514 monitors system statuses, such as the input voltage (V_IN), input current (I_IN), storage voltage (V_STRG), and temperature. It also provides interrupt options for these features.

Internal input current blocking prevents inrush current during start-up, and reverse current blocking prevents backup energy from flowing to the failing VIN port. MPS’s patented energy storage and release management control circuit minimizes the storage capacitor (C_STRG) requirement. The circuit increases V_IN to provide a higher V_STRG to store energy. If an input outage occurs, this energy is released to the system during a hold time (t_HOLD).

The MP5514 requires a minimal number of standard external components, and is available in a QFN-30 (5mmx5mm) package.

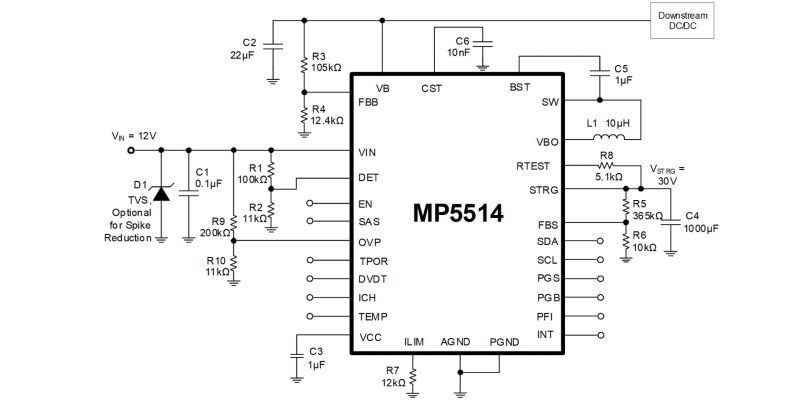

Features & Benefits

MPS-Patented, Bidirectional Buck-Boost Converter
Wide 2.7V to 18V Operating Input Voltage (V_IN) Range
Up to 32V Configurable Storage Voltage (V_STRG)
Up to 6A Configurable Input Current Limit (I_{IN_LIMIT})
Up to 5A Buck Load Capability
Adjustable Bus Voltage (V_BUS) Slew Rate
Input Current Limiting with Integrated 14mΩ MOSFET
Input Over-Voltage Protection (OVP)
Reverse-Current Protection (RCP)
Input Power Failure Indication
Storage Capacitor (C_STRG) Health Test
Comprehensive Voltage-, Current-, and Temperature-Sensing Analog-to-Digital Converter (ADC)
Thermal Shutdown
Available in a QFN-30 (5mmx5mm) Package

Active Part Numbers:

MP5514GU-xxxx-Z MP5514GU-xxxx-P MP5514GU-0000-Z MP5514GU-0000-P

Meaning of P & Z

Related Products

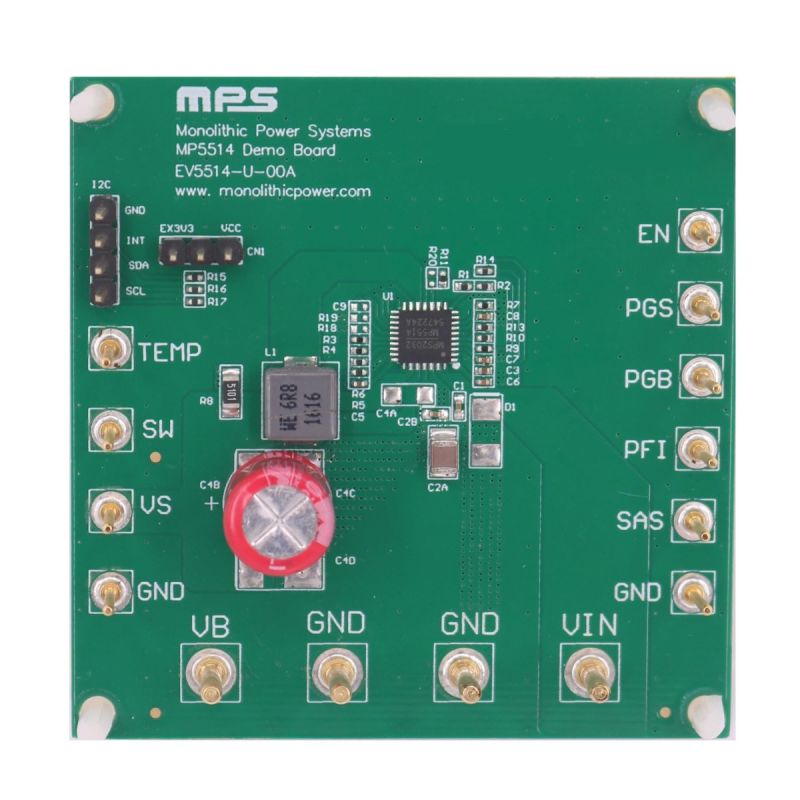

EV5514-U-00A 18V Power Backup and Management Unit for SSD Applications Evaluation Board

The EV5514-U-00A is an evaluation board designed to demonstrate the capabilities of the MP5514, an input power conditioning power management IC (PMIC) for enterprise solid-state drive (SSD) applications.

The MP5514 features input current limiting and reverse current blocking. It also integrates an MPS-patented, high-efficiency, bidirectional boost-buck converter with a single inductor for energy storage and system power backup during an input power failure. The device also provides an I²C interface, accurate input current sensing, an analog-to-digital converter (ADC), and backup capacitor health test.

The MP5514 is available in a QFN-30 (5mmx5mm) package.
