MP3021
NOT RECOMMENDED FOR NEW DESIGNS
2.7V-5.5Vin, 4-Channel, 1-Wire Interface Charge Pump LED Driver
MP3021 continues to be in production for existing customers. Please consider this alternative for new designs:

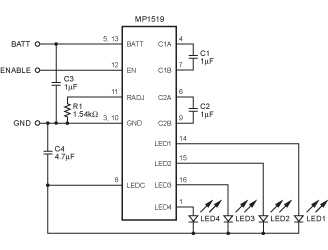

MP1519
MP1519
Charge Pump 4-Channel WLED Driver
Features & Benefits
- 2% LED Current Matching
- High Efficiency (>93%)
- Current Source Outputs
- No Ballast Resistors Required
- 1x, 1.5x and 2x Automatic Modes
- Constant Frequency Operation
- Automatic LED Detection
- High and Low Frequency PWM Capability
- 2.5V to 5.5V Operation
- Less than 1μA Leakage during Shutdown
- Detects Changes in Battery Level
- No External Schottky Diode Required
- Soft-Start and Soft Switching Operation
… and many more!
Active Part Numbers:
MP3021DQ-LF-P MP3021DQ-LF-Z
Meaning of P & Z
Evaluation Tools
The EV3021DQ-00A is the Evaluation Board for the MP3021, a WLED driver that can drive up to 4 backlight WLEDs at up to 30mA each. Backlight brightness can be adjusted with a 5 bit register plus one bit for precise low brightness control.
The MP3021 employs an efficient inductorless charge pump with 1x, 1.5x and 2x automatic mode control to achieve high efficiency power conversions.
Monolithic Power System’s single wire MPCTM serial data link provides a simple and fast interface used to enable, disable and set current levels for each LED. In addition, soft start limits the inrush current during startup and mode switching.
