MP28369

2A, 16V, 1.4MHz Step-Down Converter

NRFND

MP28369

NOT RECOMMENDED FOR NEW DESIGNS

2A, 16V, 1.4MHz Step-Down Converter

NRFND

MP28369 continues to be in production for existing customers. Please consider this alternative for new designs:

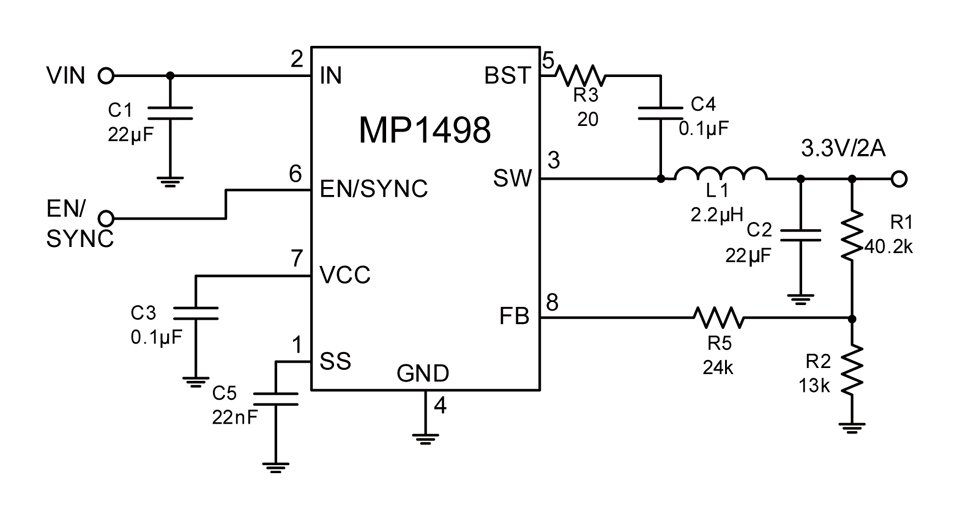

MP1498

NRFND

MP1498

NRFND

High Efficiency, 2A, 16V, higher Fsw 1.4MHz, with SS, Synchronous Step-Down Converter

Features & Benefits

  • Wide 4.5V-to-16V Operating Input Range
  • 100mΩ/40mΩ Low RDS(ON) Internal Power MOSFETs
  • Proprietary Switching-Loss–Reduction Technique
  • High-Efficiency Synchronous Mode Operation
  • Fixed 1.4MHz Switching Frequency
  • Can Synchronize to a 300kHz-to-3MHz External Clock
  • Externally-Programmable Soft-Start
  • OCP and Hiccup
  • Thermal Shutdown
  • Output Adjustable from 0.8V
  • Available in an 8-pin TSOT-23 Package

… and many more!

Active Part Numbers:

MP28369DK–Z MP28369DK–P MP28369DK–LF–Z MP28369DK–LF–P

Design Resources

Symbol, Footprint & 3D Model
30+ more formats Show more
Cad Symbols Symbols (36)
Cad Footprints Footprint (34)
Cad 3D Models 3D Models (15)

Buy direct from MPS



Talk to an Engineer or get a Quote
Quality Policy, Certificates & Reliability Reports
All MPS parts are lead-free, halogen-free and adhere to the RoHS directive. See Environmental section for details.
