MP2722 GUI

MP2722 GUI

The MP2722 is highly customizable. Users can configure the MP2722 via the downloadable I²C GUI.

Description

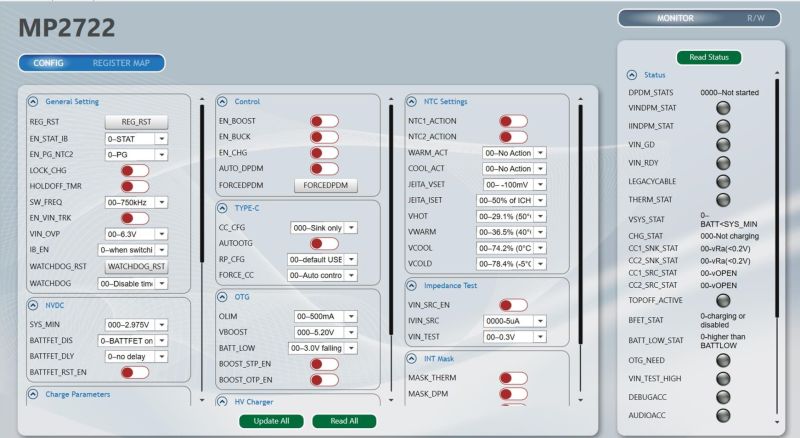

This I²C GUI allows the user to configure the MP2722. By using this I²C GUI, the user can set various parameters, including the charge current, battery cell number, battery-full voltage, output voltage (V_OUT) in source mode, and output current (I_OUT) limit in source mode. Refer to the user guides for installation and configuration instructions.

System Requirements:

Operating system of Windows XP, 7, or later
Net Framework 4.0 or later
PC with a minimum of one available USB port
At least 22.2MB of free space

Download

Technical Forum

Questions answered by MPS engineers in 24h

Not working GUI MP2722,MP2651 in Windows 10

Hi, I need to evaluate GUI MP2722 and MP2651, but on two very different laptops with Windows 10 I cannot get it working. On both laptops I can start G...

BATTERY MANAGEMENT

Latest activity 2 months ago

MP2722 Eval GUI

Could direct me to the MP2722 EVAL GUI software, I can't seem to find it on the website

BATTERY MANAGEMENT

Latest activity 2 years ago

MP2722 Eval GUI Software

Hi, Could you direct me to MP2722 Eval GUI. I can't seem to find it on website.

SIMULATION TOOLS AND GUIS

Latest activity 2 years ago
