MP2491N

32V, 6A, High-Efficiency Synchronous Step-Down Converter with External Soft Start

Overview
Design Resources
Technical Forum
Quality

Vin (Max) 30V to 48V
MP2491N

MP2491N

32V, 6A, High-Efficiency Synchronous Step-Down Converter with External Soft Start

Description

The MP2491N is a fully integrated, high-voltage, step-down converter. The MP2491N can achieve 6A of continuous output current (I_OUT), with excellent load and line regulation across a wide input supply range.

Constant-on-time (COT) control operation provides very fast transient response, easy loop design, and very tight output regulation. Full protection features include over-current protection (OCP), hiccup current limiting, output over-voltage protection (OVP), and thermal shutdown.

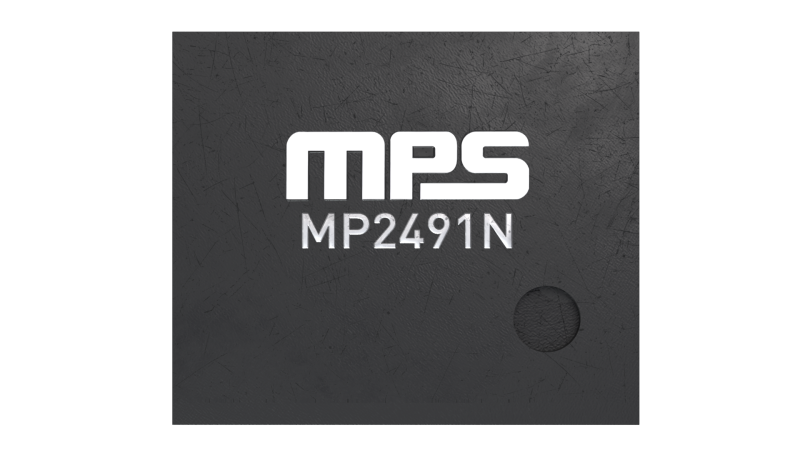

The MP2491N requires a minimal number of readily available, standard external components, and is available in a QFN-13 (2.5mmx3mm) package.

Features & Benefits

Wide 4V to 32V Operating Input Voltage (V_IN) Range
0.5V to 30V Output Voltage (V_OUT) Range
6A Output Current (I_OUT)
Constant-On-Time (COT) Control
Low-Dropout Mode Operation
30mΩ/20mΩ Internal MOSFET Switches
Fixed 540kHz Switching Frequency (f_SW)
EN Shutdown Discharge
Output Over-Voltage Protection (OVP)
Adjustable Auto-PFM/PWM Mode or Forced PWM Mode
Power Good (PG) Indication
Configurable Soft Start

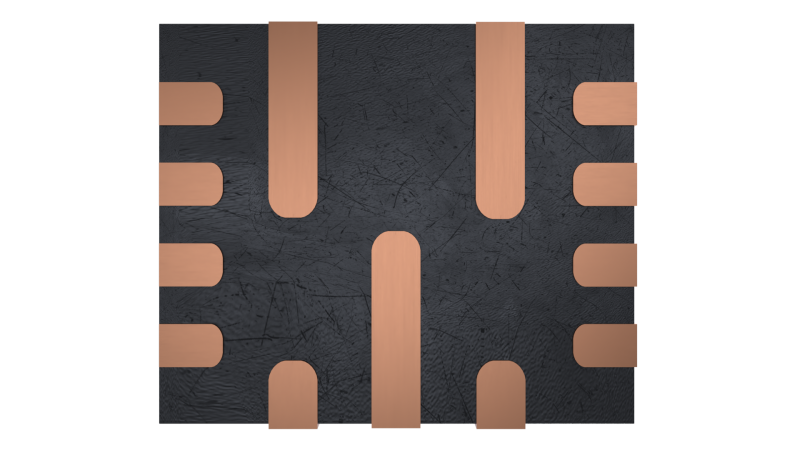

Available in a QFN-13 (2.5mmx3mm) Package

Active Part Numbers:

MP2491NGQB-Z MP2491NGQB-P
