EVX2002-Y-00D

EVX2002-Y-00D

65W, USB Type-C PD Adapter Evaluation Board

Datasheet

Description

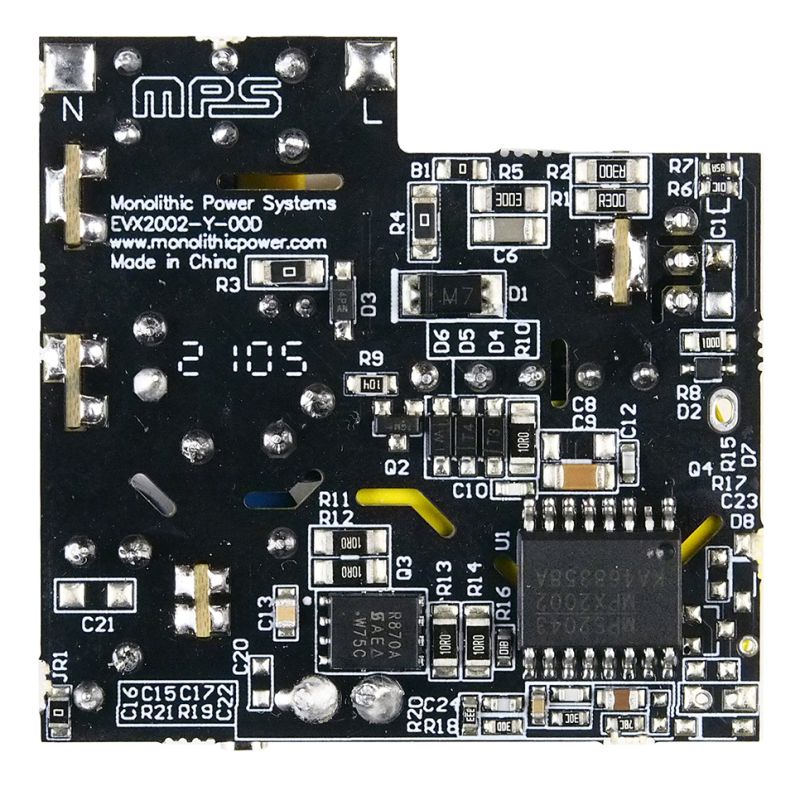

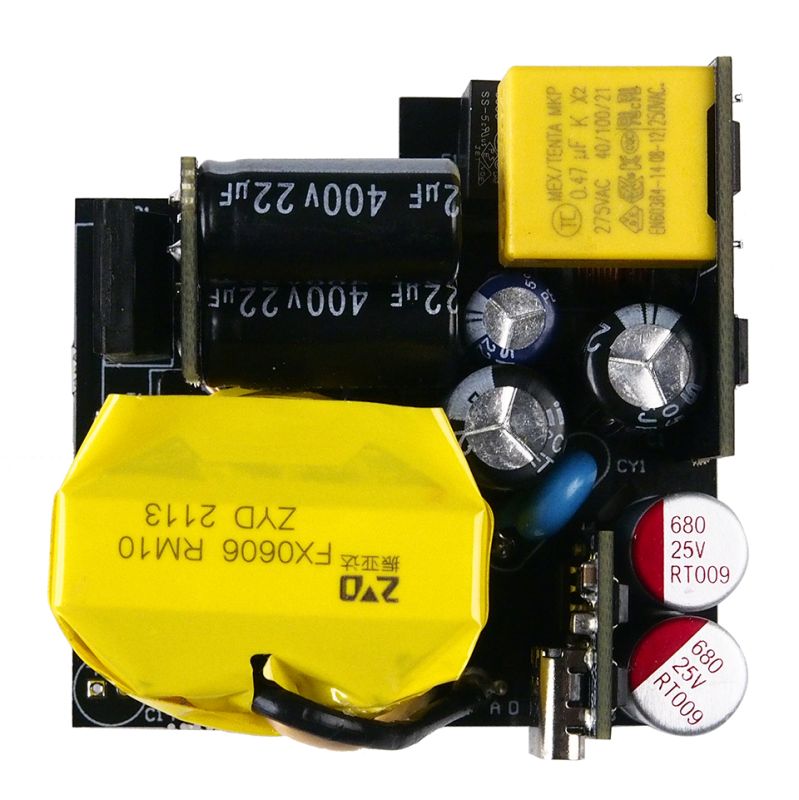

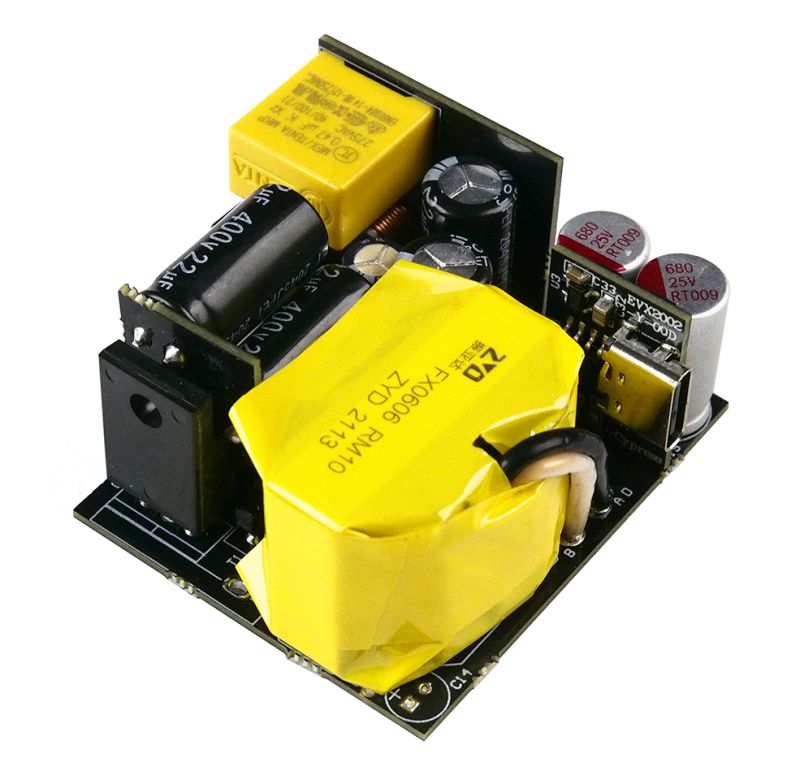

The EVX2002-Y-00D is an evaluation board designed to demonstrate the capabilities of the MPX2002, a 65W USB Type-C PD adapter. The board is designed in a very small form factor with a high power density. Its electrical specifications are well-suited for cellphone and computer power adapters.

The EVX2002-Y-00D provides very low no-load power consumption (<30mW), and its high overall efficiency meets DOE Level VI and CoC Tier2.

Product Evaluated

Features & Benefits

>3750V_AC Isolation Voltage
100% Production HIPOT Compliance Testing
UL1577 and IEC62368 Safety Approved, DIN VDE V 0884-17 in Progress
Integrated Multi-Mode: Discontinuous Conduction Mode (DCM), Quasi-Resonant (QR) Mode, and Continuous Conduction Mode (CCM)
Flyback Controller, Secondary-Side Synchronous Rectifier (SR) Sensing/Driving Circuitry, and Safety-Compliant Feedback (FB) Link
Integrated 650V Primary-Side Current Source and 150V Secondary-Side Current Source
<30mW in Standby Mode
Improved SR Control for Reliable Operation and Higher Efficiency
V_CC Over-Voltage Protection (OVP)
Primary Over-Current Protection (POCP)
Secondary-Sense Output Overload Protection (OLP)
Internal Brown-In/Brownout (B/O, B/I)
Short-Circuit Protection (SCP)
Current-Sense Short Protection (SSP)
SR Gate Open/Short Protection (SGOP/SGSP)
SRD Abnormal Protection (SRDP)
FB OVP and Under-Voltage Protection (UVP)
Internal Thermal Shutdown
Under-Voltage Lockout (UVLO) Protection
Externally Triggered Protection (Ext.P)
Available in TSOICW16-15 and SOICW-16 Packages

Active Part Numbers:

EVX2002-Y-00D

Design Resources

Buy direct from MPS

Standard Pricing

Quantity Price
1

$50.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
