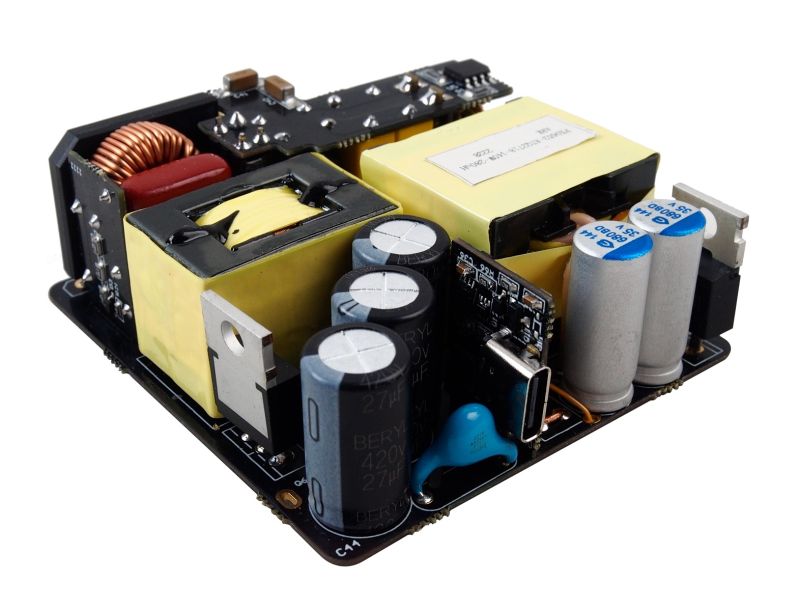

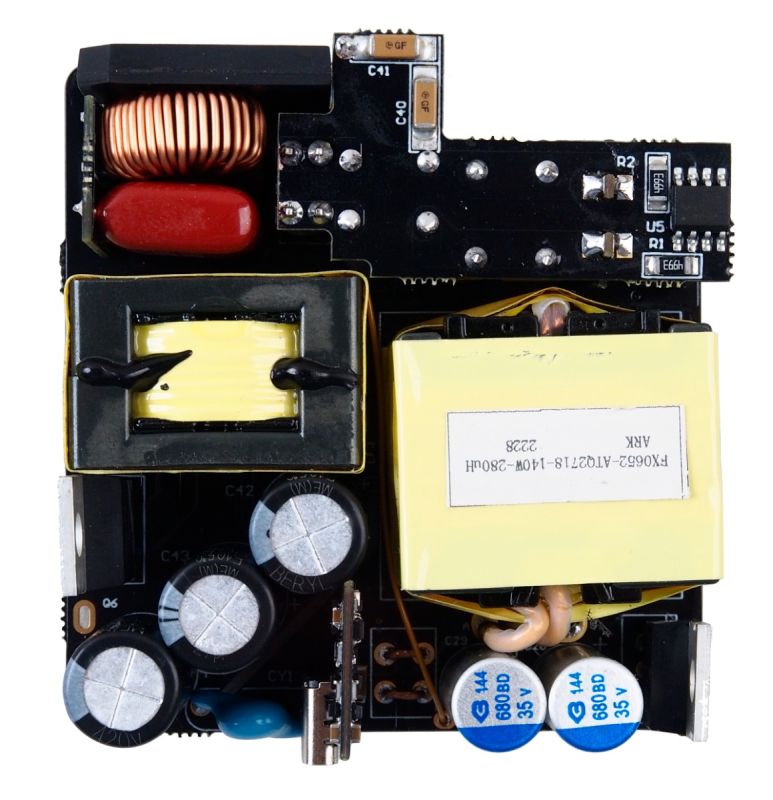

140W, USB Type-C PD3.1 Adapter Evaluation Board

Datasheet

Description

The EVX2002-44018A-00B evaluation board is a 140W, USB Type-C power delivery (PD) 3.1 adapter designed to demonstrate the capabilities of the MP44018A and MPX2002. The EVX2002-44018A-00B is designed in a very small form factor with a high power density. Its electrical specifications are well-suited for cellphone and computer power adapters.

The evaluation board provides very low, no-load power consumption (<100mW), and its high overall efficiency meets DOE Level VI and CoC Tier 2.

Product Evaluated

Features & Benefits

>3750V_AC Isolation Voltage
100% Production HIPOT Compliance Testing
UL1577 and IEC62368 Safety Approved, DIN VDE V 0884-17 in Progress
Integrated Multi-Mode: Discontinuous Conduction Mode (DCM), Quasi-Resonant (QR) Mode, Continuous Conduction Mode (CCM)
Flyback Controller, Secondary-Side Synchronous Rectifier (SR) Sensing/Driving Circuitry, and Safety-Compliant Feedback Link
Integrated 650V Primary-Side Current Source and 150V Secondary-Side Current Source
Less than 30mW in Standby Mode
Improved SR Control for Reliable Operation and Higher Efficiency
V_CC Over-Voltage Protection (OVP)
Primary Over-Current Protection (POCP)
Secondary-Sense Output Overload Protection (OLP)
Internal Brown-In (B/I) and Brownout (B/O)
Short-Circuit Protection (SCP)
Current-Sense Short Protection (SSP)
SR Gate Open/Short Protection (SGOP/SGSP)
SRD Abnormal Protection (SRDP)
Feedback (FB) OVP and Under-Voltage Protection (UVP)
Internal Thermal Shutdown
Under-Voltage Lockout (UVLO)
Externally Triggered Protection (Ext.P)
Available in TSOICW16-15 and SOICW-16 Packages

Active Part Numbers:

EVX2002-44018A-00B
