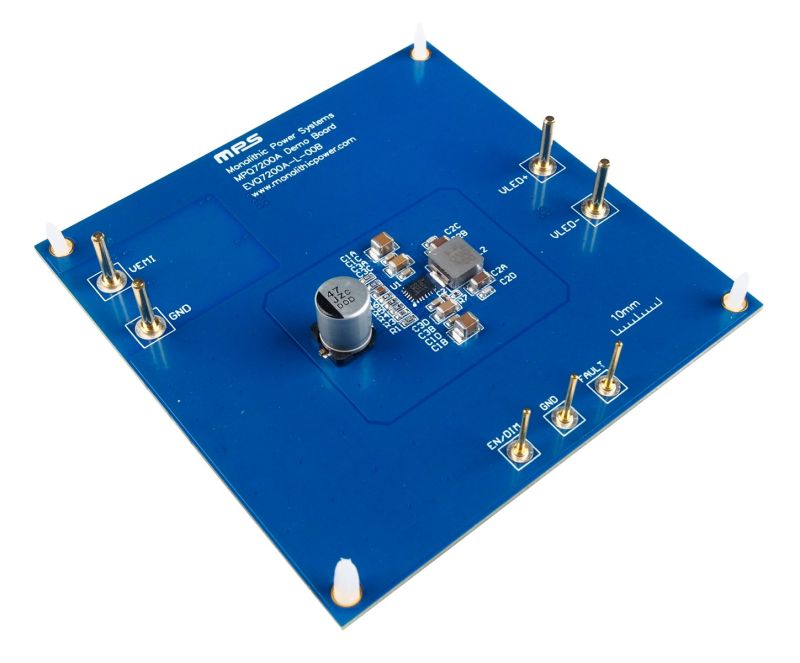

The EVQ7200A-L-00B evaluation board is designed to demonstrate the capabilities of the MPQ7200A-AEC1, a constant-current LED driver with integrated power MOSFETs. The MPQ7200A-AEC1 offers a very compact solution to achieve up to 1.2A of continuous output current (IOUT), with excellent load and line regulation across a wide input supply range.
Constant frequency hysteretic control mode provides extremely fast transient response without loop compensation. The 410kHz switching frequency (fSW) in buck-boost mode is optimized for efficiency and thermal performance.
The MPQ7200A-AEC1 is available in a QFN-19 (3mmx4mm) package with wettable flanks, and is available in AEC-Q100 Grade 1. The EVQ7200A-L-00B is a fully assembled and tested evaluation board that generates an LED current up to 1.2A across a 6V to 20V input voltage (VIN) range.
