30V, Half-Bridge Power Driver Evaluation Board

Datasheet

Description

The EVQ6610-S-00B is an evaluation board designed to demonstrate the capabilities of the MPQ6610, a half-bridge power driver.

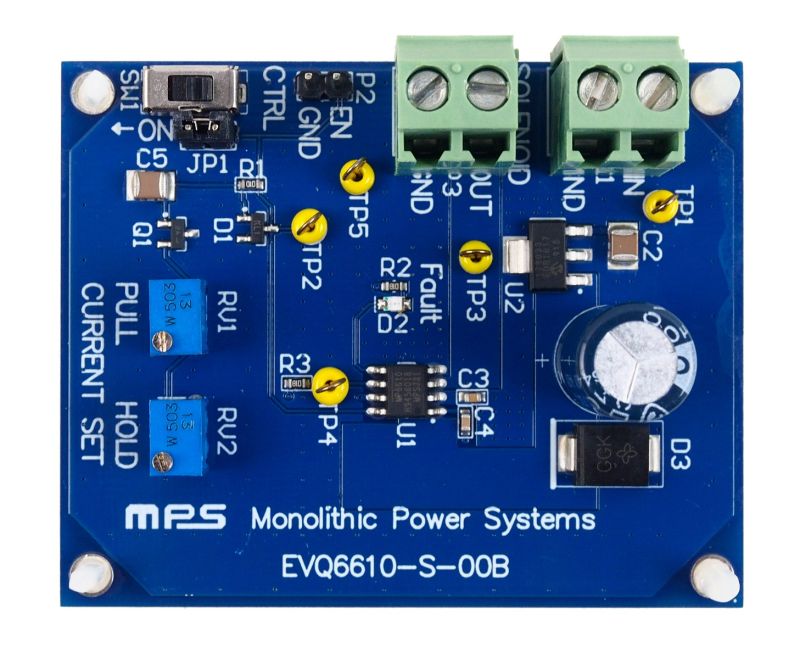

The EVQ6610-S-00B is designed to drive solenoid loads. It operates from a supply voltage of up to 30V with a configurable pull-in current and hold current. The input control signal for the MPQ6610 can be set by SW1 or applied through a connector (P2) on the board.

Product Evaluated

Features & Benefits

Wide 5V to 30V Input Voltage (V_IN) Range
Configurable Pull-in Current and Hold Current
Internal Current Sense
Over-Current Protection (OCP), Over-Voltage Protection (OVP), and Over-Temperature Protection (OTP)
Fault Indication Output
