EVQ4480-V-00A

New

6A,36V,Step-Down Converter for Automotive, AEC-Q100 Qualified Evaluation Board



Learn about our Evaluation Kit
Talk to an Engineer or get a Quote

Product Description

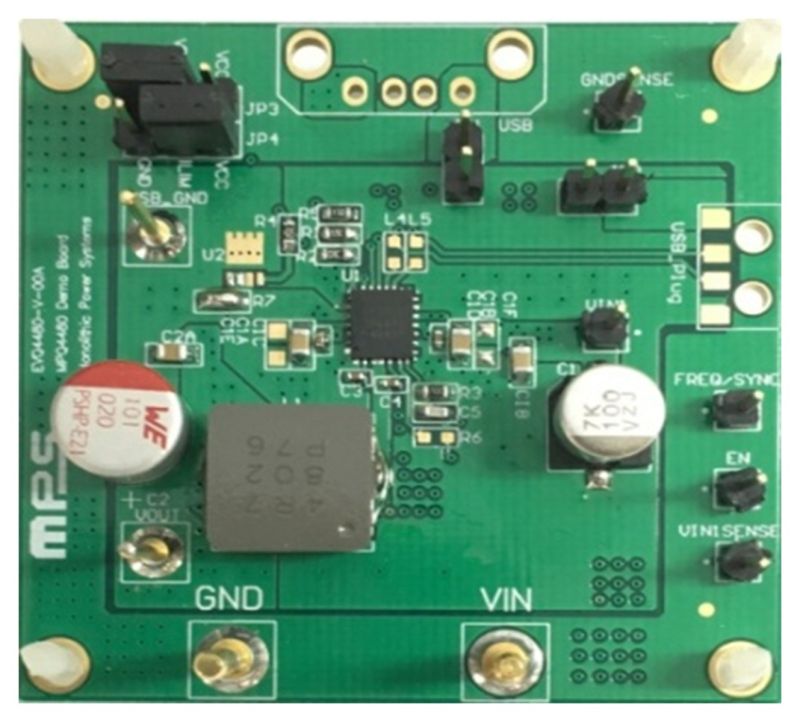

The EVQ4480-V-00A Evaluation Board is designed to demonstrate the capabilities of MPS’ MPQ4480, which is a high-frequency, synchronous rectified, step-down, switch-mode converter. It achieves 6A output current over a wide input-supply range with excellent load and line regulation over a wide input-supply range. The MPQ4480 has synchronous-mode operation for higher efficiency over the output-load range.

Fault condition protection includes hiccup current limiting, OVP, ground short to battery protection and thermal shutdown (TSD).

The MPQ4480 requires a minimum number of readily available, standard, external components. The MPQ4480 is available in a QFN25 (4mmx5mm) package

Product Features

  • 4.2V to 36V Operating Input-Voltage Range
  • 6A Output Current
  • Internal Auto EN Pull-up
  • 20mΩ/15mΩ Low RDS(ON) Internal Buck Power MOSFETs
  • Integrated 4mΩ Ground Sensing Resistor
  • Frequency Adjustable (235kHz to 2.2MHz)
  • CC Output-Current Limit, 3 level adjustable, 2.75A/3.75A/7.5A
  • Forced PWM Mode
  • Support 300kHz to 2.1MHz Frequency SYNC Input
  • EN Shutdown Discharge
  • Low Dropout Mode
  • Battery Short to Ground Protect Driver
  • Output Over Voltage Protection
  • Adjustable Line Drop Compensation
  • Available in AEC-Q100 Grade 1

Parametrics

  • ChannelsMPQ4480

6A, 36V, Step-Down Converter for Automotive, AEC-Q100 Qualified

The MPQ4480 is a high-frequency, synchronous rectified, step-down, switch-mode converter. It achieves 6A output current over a wide input-supply range with excellent load and line regulation over a wide input supply range. The MPQ4480 has synchronous mode operation for higher efficiency over the output load range.

Fault condition protection includes hiccup current limiting, OVP, and thermal shutdown (TSD).

The MPQ4480 requires a minimal number of readily available, standard external components. The MPQ4480 is available in a QFN-25 (4mmx5mm) package.
