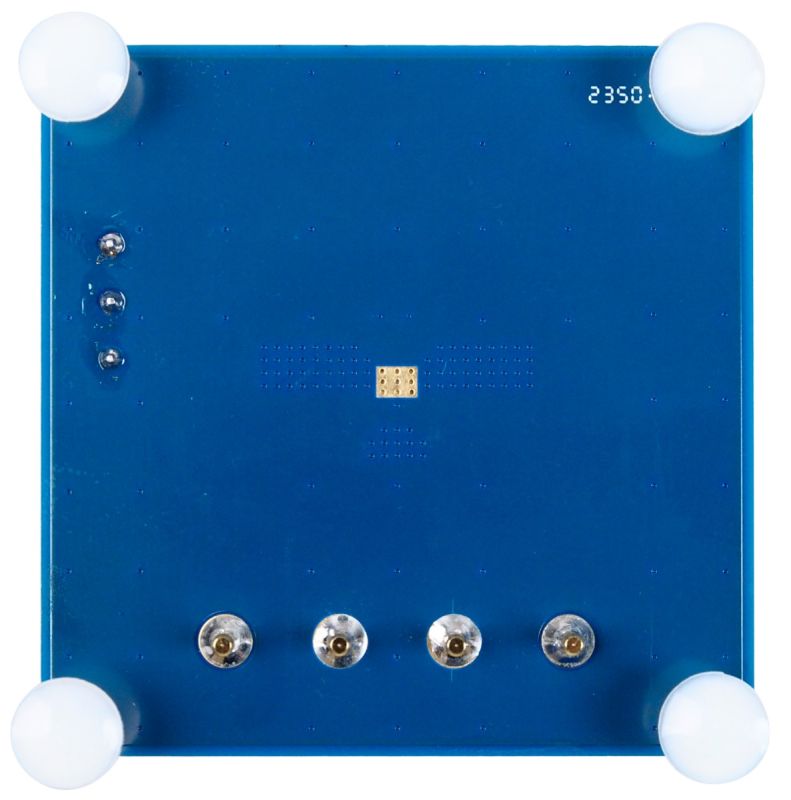

The EVQ2019A-N-00A is an evaluation board designed to demonstrate the capabilities of the MPQ2019A-AEC1, a low linear regulator that supplies power to systems with high-voltage batteries.

The MPQ2019A-AEC1 features a wide 3V to 40V input voltage (V_IN) range, a low dropout voltage, and a low quiescent supply current (I_Q). The low I_Q and low dropout voltage allow the device to operate at low power levels. This makes the MPQ2019A-AEC1 ideal for low-power microcontrollers (MCUs) and battery-powered equipment.

The EVQ2019A-N-00A is a fully assembled and tested evaluation board. It generates a 5V output voltage (V_OUT) at load currents up to 300mA across a 6V to 40V V_IN range.

It is recommended to read the datasheet for the MPQ2019A-AEC1 prior to making any changes to the EVQ2019A-N-00A.
