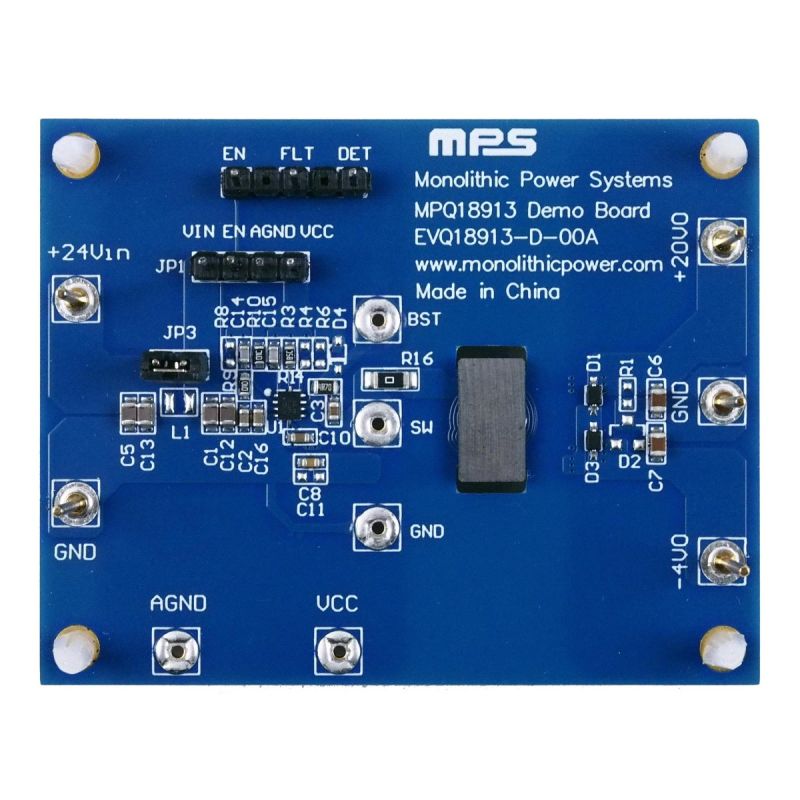

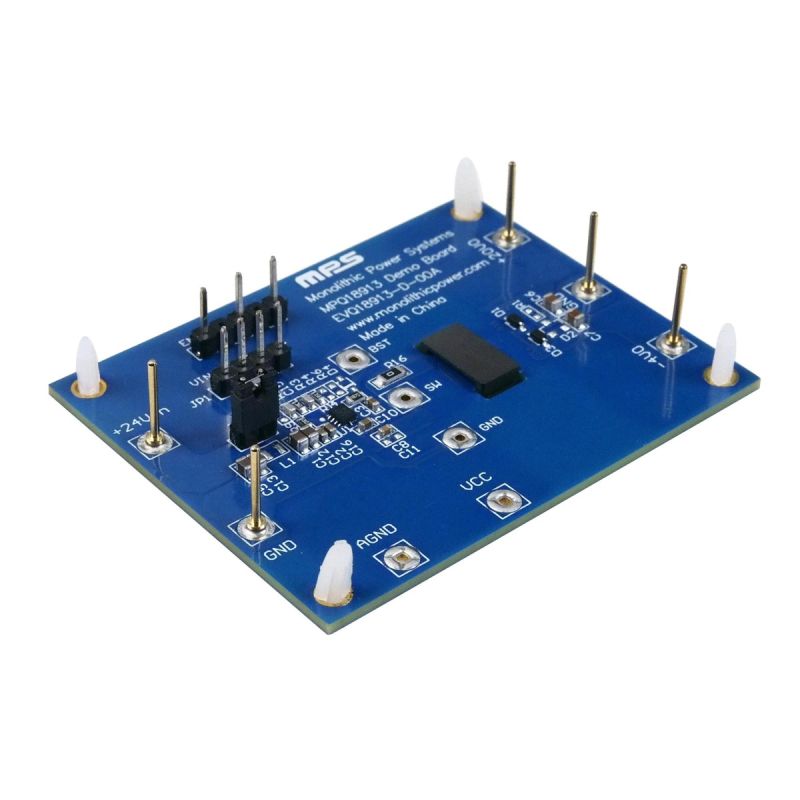

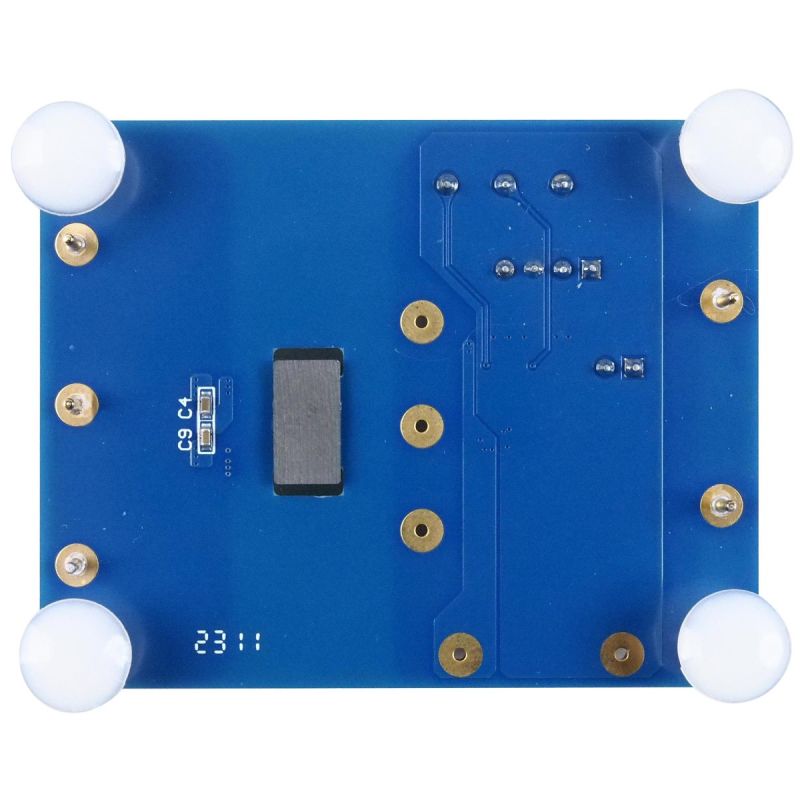

EVQ18913-D-00A

The EVQ18913-D-00A is an evaluation board designed to demonstrate the capabilities of the MPQ18913, a high-frequency, half-bridge transformer driver that is ideal for primary-side switchers used in isolated power supplies.

The MPQ18913 features an adjustable switching frequency (f_SW) with a wide range, which is particularly useful in resonant topologies such as LLC converters. It also offers input over-voltage protection (OVP), over-current protection (OCP), and fault indication. Soft start (SS) is built in to control the inrush current.

The MPQ18913 is available in a QFN-10 (2mmx2.5mm) package with wettable flanks and is available in AEC-Q100 Grade 1. It is recommended to read the MPQ18913 datasheet prior to making any changes to the EVQ18913-D-00A.
