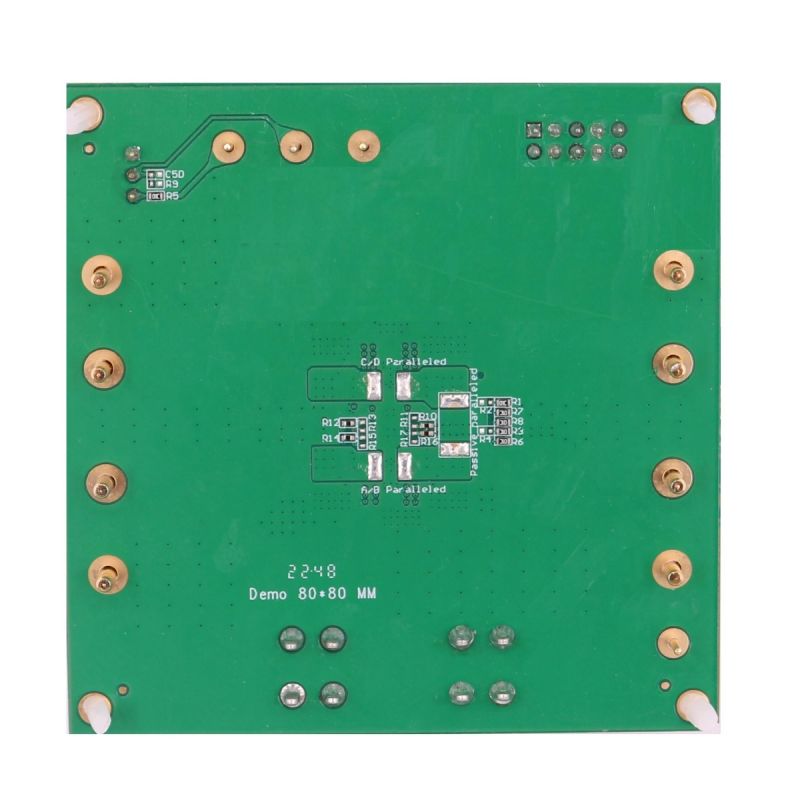

The EVM54524-CQ-00A evaluation board is designed to demonstrate the capabilities of the MPM54524, a 5A quad-output, integrated power module with an I²C interface. The MPM54524 offers a complete power solution with built-in on/off sequencing control, configurable soft start (SS), compensation, and various protection thresholds.

The MPM54524 offers configurable active voltage positioning (AVP) to generate a droop voltage that allows on-demand parallel operation, where four outputs, three paralleled outputs, or two outputs can operate in parallel in any combination without pre-setting the registers. The paralleled channels’ current is inherently balanced by the AVP droop voltage. Full protection features include under-voltage lockout (UVLO), over-current protection (OCP), over-voltage protection (OVP), under-voltage protection (UVP), and thermal shutdown.

The MPM54524 is available in a compact ECLGA-51 (8mmx8mmx2.9mm) package. It is recommended to read the MPM54524 datasheet prior to making any changes to the EVM54524-CQ-00A.
