EVM3695-20-PJ-00A

EVM3695-20-PJ-00A

16V, 25A, High-Efficiency, Synchronous, Step-Down Module Evaluation Board

Datasheet

Description

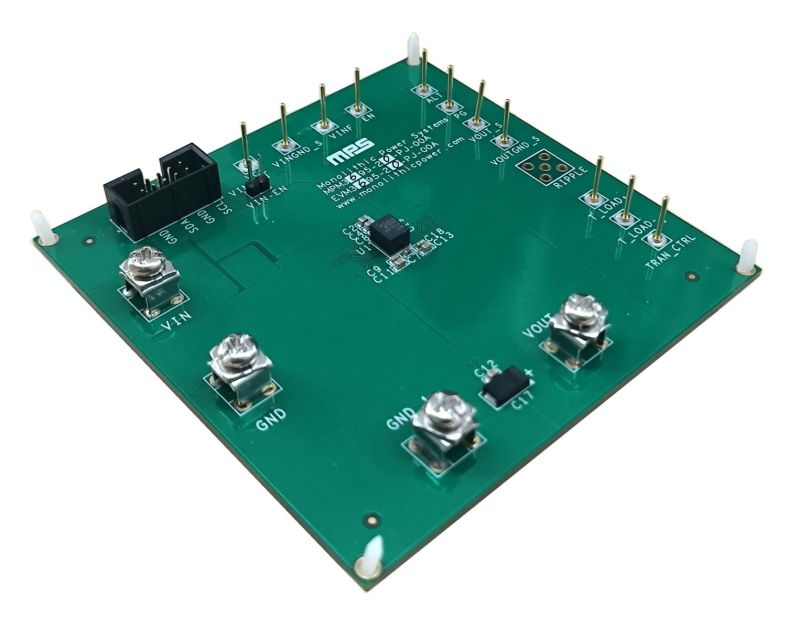

The EVM3695-20-PJ-00A evaluation board is designed to demonstrate the capabilities of the MPM3695-20, a fully integrated, high-efficiency, synchronous step-down power module with 25A of output current (I_OUT).

The MPM3695-20 adopts internally compensated constant-on-time (COT) control to provide fast transient response and ease loop stabilization. The switching frequency (f_SW) can be set between 400kHz and 1MHz. Refer to the MPM3695-20 datasheet for more detailed information.

It is recommended to read the datasheet for the MPM3695-20 prior to making any changes to the EVM3695-20-PJ-00A.

Product Evaluated

Features & Benefits

Wide Input Voltage (V_IN) Range from 3V:
- 3V to 16V V_IN with External V_CC
- 4V to 16V V_IN with Internal V_CC
0.5V to 5.5V Output Voltage (V_OUT) Range
25A of Continuous Output Current (I_OUT)
Automatic Interleaving for Multi-Phase Operation
Automatic Compensation with Adaptive Multi-Phase Constant-On-Time (MCOT) for Ultra-Fast Transient Response
±1% Reference Voltage (V_REF) Accuracy ( -40°C to +125°C)
True V_OUT Remote Sense
Pre-Biased Output
Telemetry Readback Including V_IN, V_OUT, I_OUT, Temperature, and Faults
Built-In Multiple-Time Programmable (MTP) Memory to Store Custom Configurations
Configurable via the Digital Interface:
- Current Limit
- Pulse-Skip Mode (PSM) or Continuous Conduction Mode (CCM) Selection
- Soft-Start Time (t_SS)
- Switching Frequency (f_SW) Selection: 400kHz, 600kHz, 800kHz, or 1000kHz
- Fault Limits
- Ramp Compensation
Available in an ECLGA-29 (5mmx6mmx4.4mm) Package

Active Part Numbers:

EVM3695-20-PJ-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
