EVM3690-50A-BF-00A

EVM3690-50A-BF-00A

16V, Dual 25A, High-Efficiency, Synchronous Step-Down Module Evaluation Board

Datasheet

Description

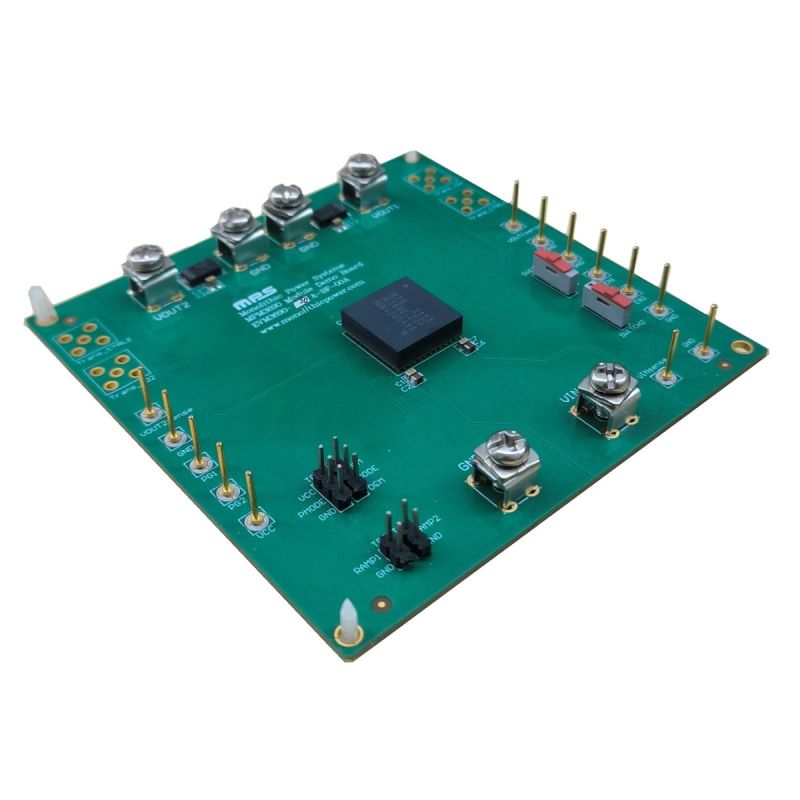

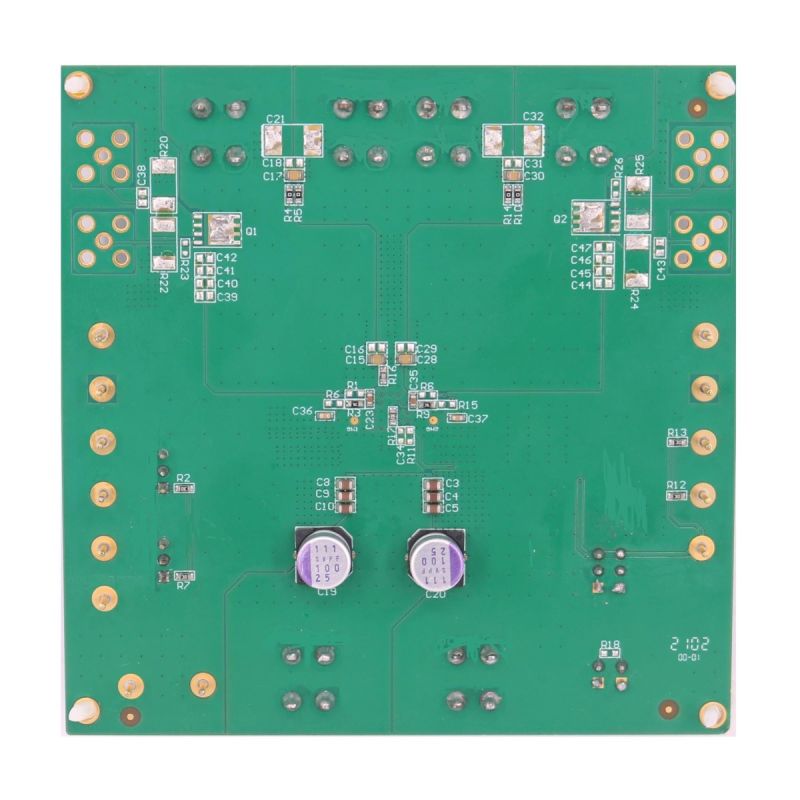

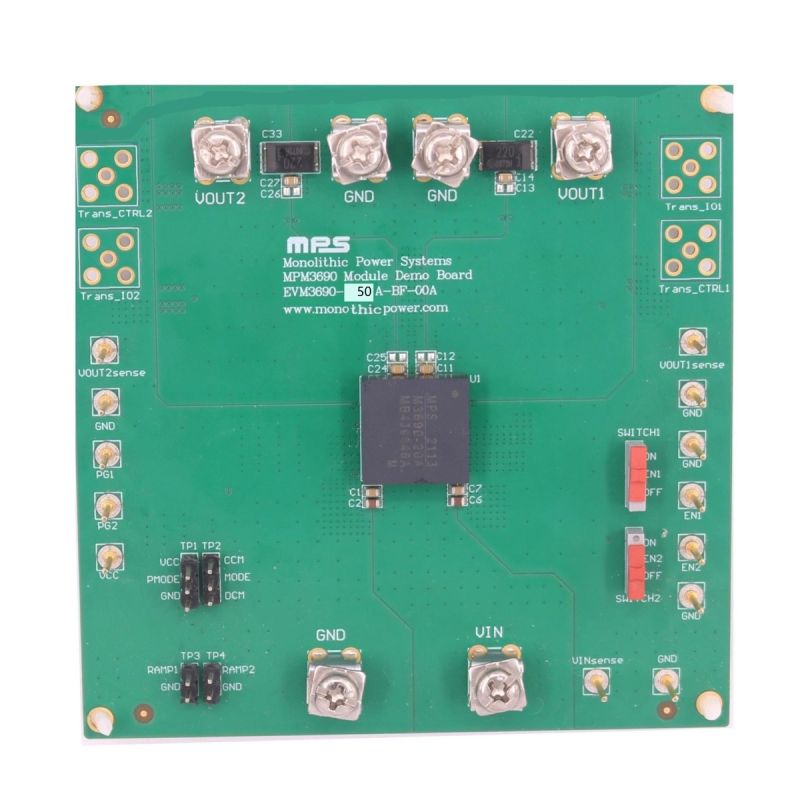

The EVM3690-50A-BF-00A is an evaluation board designed to demonstrate the capabilities of the MPM3690-50A, a fully integrated, high-efficiency, synchronous, dual 25A output current (I_OUT), step-down power module.

The MPM3690-50A adopts internally compensated constant-on-time (COT) control to provide fast transient response and ease loop stabilization. The operating frequency can be set between 400kHz and 1MHz by connecting a resistor between f_SET and AGND. Refer to the MPM3690-50A datasheet for more detailed information.

It is recommended to read the datasheet for the MPM3690-50A prior to making any changes to the EVM3690-50A-BF-00A.

Product Evaluated

Features & Benefits

Pin-Compatible, Dual 25A and Single 50A Output Power Modules:
- MPM3690-50A: Dual 25A
- MPM3690-50B: Single 50A
4V to 16V Input Voltage (V_IN) Range:
- 3.2V to 16V V_IN Range with External 3.3V VCC Bias
0.6V to 1.8V Output Voltage (V_OUT) Range
Ultra-Fast Transient Enabled by Constant-On-Time (COT) Control
Adjustable Switching Frequency (f_SW)
Adjustable Soft-Start Time (t_SS)
Over-Current Protection (OCP)
Over-Voltage Protection (OVP)
Differential Remote Sense for Both Output Channels
Pin-Compatible with the MPM3690-20A/B and MPM3695-30A/B
Available in a BGA Package (16mmx16mmx5.18mm)

Active Part Numbers:

EVM3690-50A-BF-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$45.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
