EVL3439-C-00A

EVL3439-C-00A

5.2V, 3A Dual-Phase Boost Converter with Output Disconnect and I²C Interface Evaluation Board

MPL

Datasheet

Description

MPL

Optimized Performance with MPS Inductor

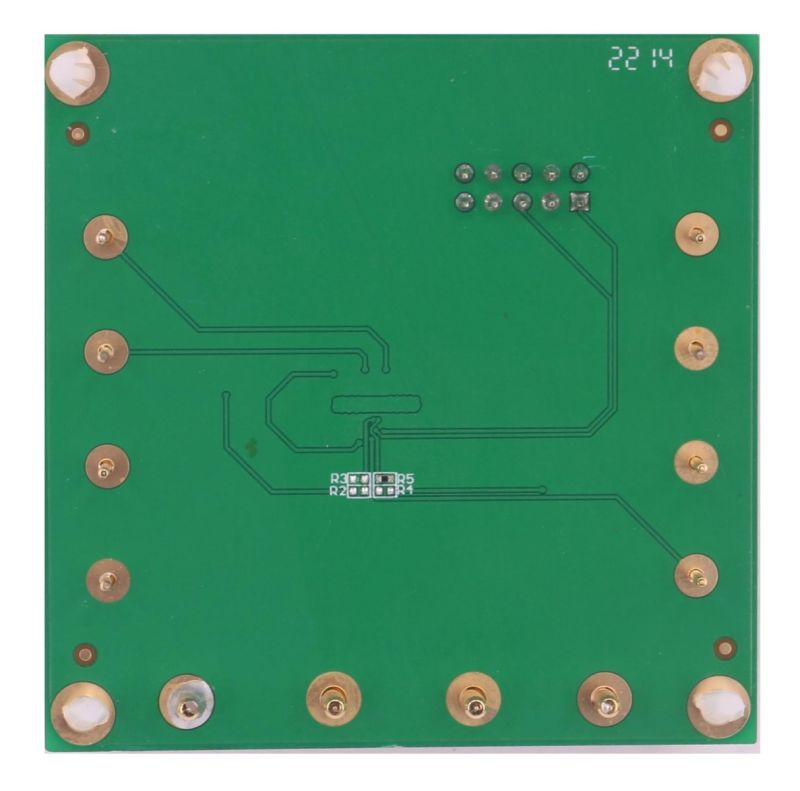

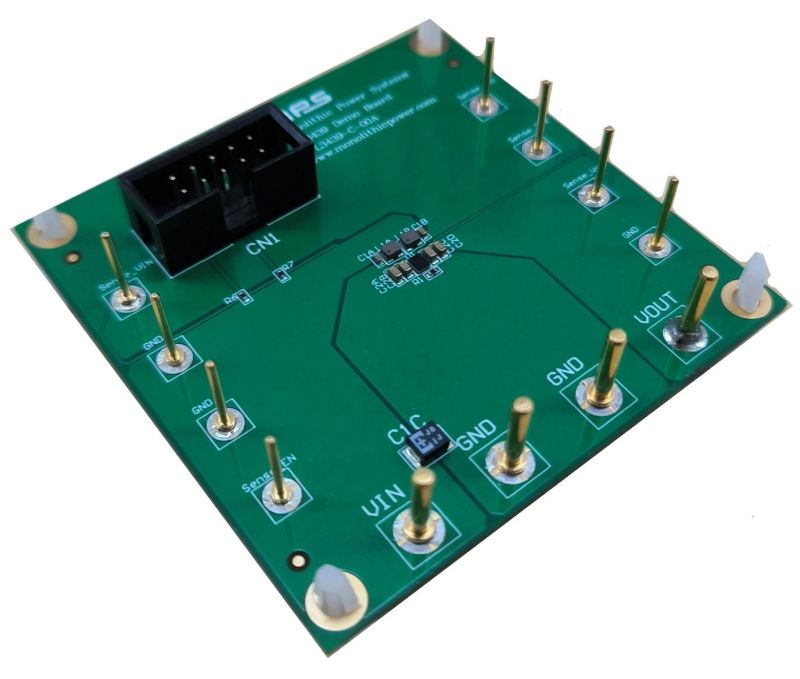

The EVL3439-C-00A is an evaluation board designed to demonstrate the capabilities of the MP3439, a high-efficiency, synchronous, dual-phase boost converter with an output disconnect function.

The MP3439 adopts constant-off-time control topology to provide fast transient response. The integrated synchronous MOSFETs disconnect the output from the input during shutdown. Dual-phasing switching with high frequency enables a small-sized power solution for up to 3A of load current from a 1-cell lithium battery.

The MP3439 features an I²C interface to configure the output voltage (V_OUT), current limit, and light-load operation. The MP3439 is available in a WLCSP-20 package.

It is recommended to read the MP3439 datasheet prior to making any changes to the EVL3439-C-00A.

Product Evaluated

Features & Benefits

2.7V to 5V Input Voltage (V_IN) Range
5V to 5.5V I²C-Configurable Output Voltage (V_OUT) with 25mV Resolution.
2.5A and 3.5A Selectable Switching Valley Current Limit via the I²C
23μA Quiescent Current (I_Q)
1MHz and 2MHz Selectable Switching Frequency (f_SW)
Dual-Phase Boost Switching with 180° Shift
24mΩ and 29mΩ Internal FETs for Each Phase
Constant-On-Time (COT) Control for Fast Transient Response
Pulse-Skip Mode (PSM), Ultrasonic Mode (USM), and Forced Continuous Conduction Mode (FCCM) via the I²C or MODE Pin Setting
Frequency Spread Spectrum (FSS) for Improved EMI
Over-Current Protection (OCP), Short-Circuit Protection (SCP), Over-Voltage Protection (OVP), and Over-Temperature Protection (OTP)
True V_OUT Disconnect Function
Available in a WLCSP-20 (1.75mmx2.10mm) Package
Optimized Performance with MPS Inductor MPL-AT Series

Active Part Numbers:

EVL3439-C-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
