EVKT-MP2760

EVKT-MP2760

MP2760 Evaluation Kit, 1 Cell to 4 Cells, Buck-Boost NVDC Charger with Source Mode and Serial Interface Control

Datasheet

Description

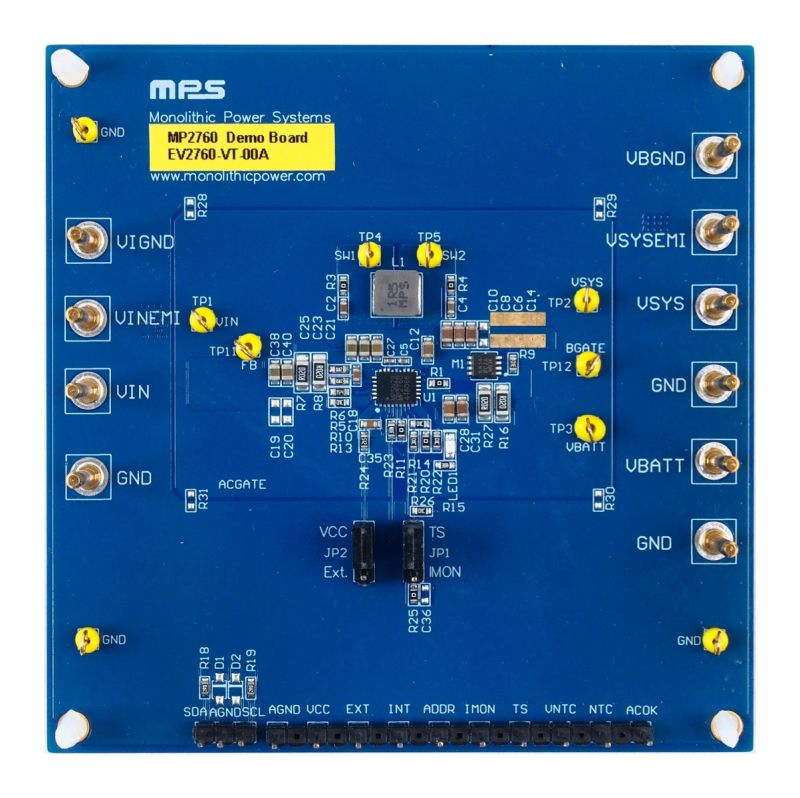

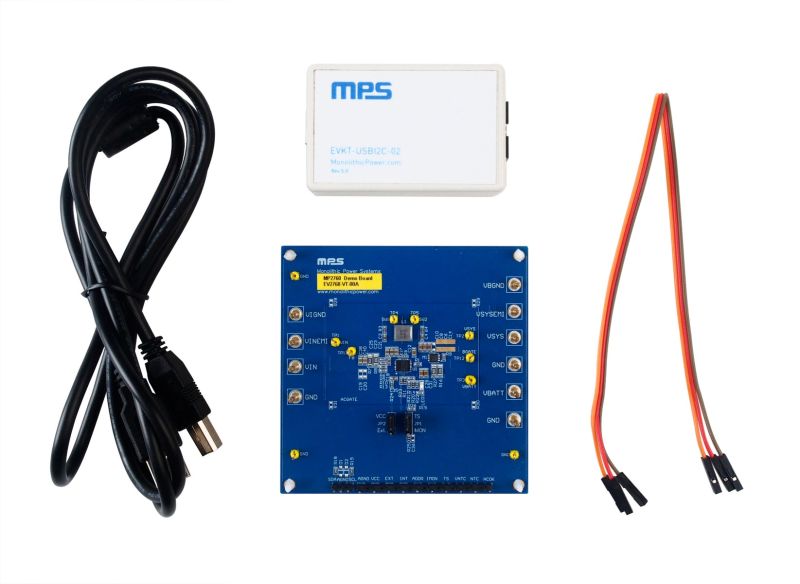

The EVKT-MP2760 is an evaluation kit for the MP2760. The board is designed to demonstrate the capabilities of the MP2760, a buck-boost narrow-voltage DC (NVDC) charger IC for battery packs with 1 cell to 4 cells in series.

The device accepts a wide 4V to 22V input voltage (V_IN) range to charge the battery and power the load connected on the SYS pin. It also supplies a wide 3V to 21V voltage range at the IN pin when source mode is enabled, which is compliant with USB power delivery (PD) specifications.

Product Evaluated

Features & Benefits

Fully Integrated Buck-Boost Charger with Low On Resistance (R_DS(ON)) Power MOSFETs for 1 to 4 Cells in Series Battery Pack
Integrated N-Channel MOSFET Driver for Narrow-Voltage DC (NVDC) Power Path Control
Integrated N-Channel MOSFET Driver for Input Power Pass-Through
Wide Operating Range:
- 4V to 22V Operating Input Voltage (V_IN)
- 3V to 21V Reverse Output Voltage (V_OUT) with 20mV/Step
- Up to 6A Input Current (I_IN) Limit with 50mA/Step
- Up to 6A Charge Current with 50mA/Step
- Up to 6A Output Current (I_OUT) with 50mA/Step
- 3.4V/Cell to 4.67V/Cell Battery-Full Voltage with 0.5% Accuracy
- 4V to 20.4V Minimum V_IN Limit with 80mV/Step
- 500kHz to 1.2MHz Switching Frequency (f_SW)
Serial Interface Host Control Interface to Support Flexible Parameter Setting and Status Reporting
Integrated 10-Bit Analog-to-Digital Converter (ADC) for Voltage, Current, and Temperature Monitoring
Analog Output Pin to Monitor Charge Current
Built-In Robust Protections:
- Input Over-Voltage Protection (OVP)
- Battery OVP
- Output Short-Circuit Protection (SCP) in Source Mode
- Battery Missing Detection
- NTC Pin Floating Detection
- Configurable JEITA for Battery Temperature Protection
- Thermal Regulation and Thermal Shutdown
- Safety Charge Timer
Available in a TQFN-30 (4mmx5mm) Package

Active Part Numbers:

EVKT-MP2760

Design Resources

Buy direct from MPS

Standard Pricing

Quantity Price
1

$125.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
