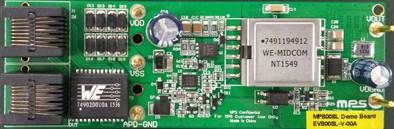

EV8008L-V-00AEvaluation Board is designed to demonstrate the capability of MP8008L`s function. The MP8008L is an integrated IEEE 802.3af/at PoE compliantPowered Device (PD) power supply converter. It includes PD interface and peak current mode flyback controller.
The PD interface has all the functions of IEEE 802.3af/at, and sets 85mA inrush current limit, 840mA operation current limit as well as 100V Hot-swap MOSFET.
The flyback PWM controller can drive an external MOSFET capable of handling more than 10A current. PSM function improves the efficiency in light load condition. The MP8008L flyback also features protection including over load, short output and over voltage protection.
The MP8008L can support a front-end solution for PoE-PD application, it is available in QFN-28 (4mmX5mm) package.
