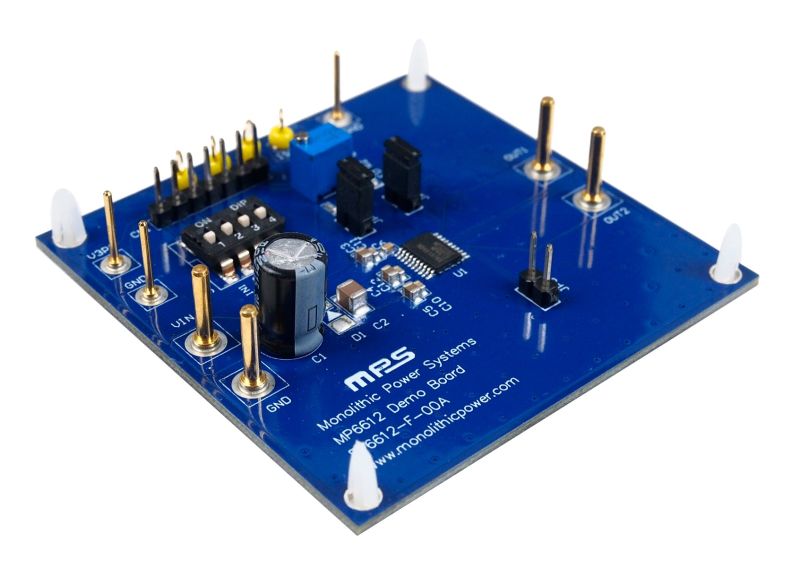

The EV6612-F-00A is an evaluation board designed to demonstrate the capabilities of the MP6612, an H-bridge motor driver used for driving reversible motors.

The MP6612 operates across a 4V to 40V input voltage (V_IN) range and can deliver a motor current up to 5A. The MP6612’s input control signals are applied through a connector on the board. For the MP6612, control of the outputs is accomplished through the IN1 and IN2 pins.

The MP6612 is available in a TSSOP-20EP package with an exposed thermal pad.

It is recommended to read the MP6612 datasheet prior to making any changes to the EV6612-F-00A.
