55V, 3A, Half-Bridge Power Driver Evaluation Board

Description

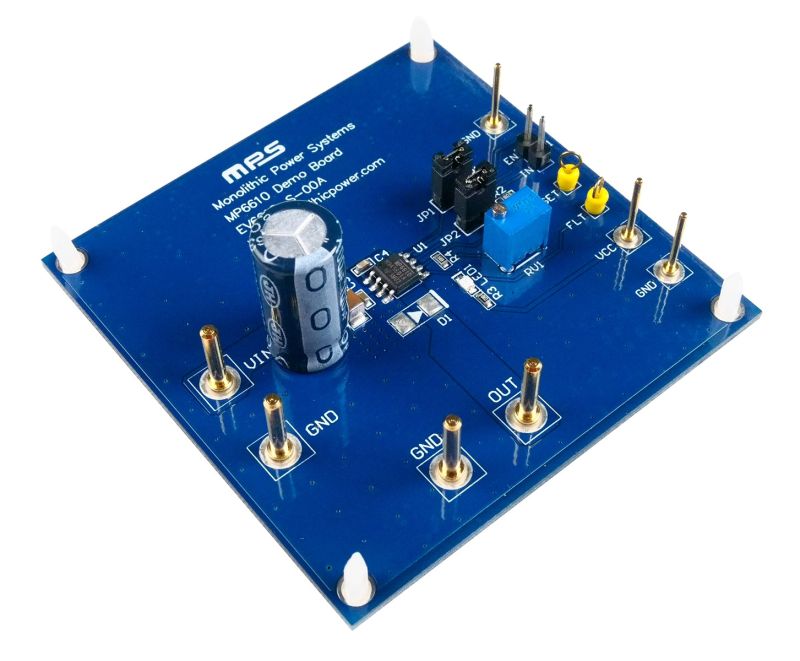

The EV6610-S-00A is an evaluation board designed to demonstrate the capabilities of the MP6610, a half-bridge power driver. The EV6610-S-00A can operate from supply voltages up to 55V, and can deliver up to 3A of output current (I_OUT).

The MP6610’s input control signals can be generated on the evaluation board or from an external controller via the board’s connector (P1).

The MP6610 is available in TSOT23-8 and SOIC-8 packages. Note that due to the small pin spacing, the TSOT23 package is only recommended for applications up to 45V, unless conformal coating or encapsulation is used.

Product Evaluated

55V, 3A, Half-Bridge Power Driver

Features & Benefits

Wide 4V to 55V Input Voltage (V_IN) Range
Up to 3A Output Current (I_OUT)
Internal Current Sense (CS)
2.5V, 3.3V, or 5V Compatible Logic Supply
Over-Current Protection (OCP)
Over-Voltage Protection (OVP)
Over-Temperature Protection (OTP)
Fault Indication Output
Available in TSOT23-8 and SOIC-8 Packages

Active Part Numbers:

EV6610-S-00A
