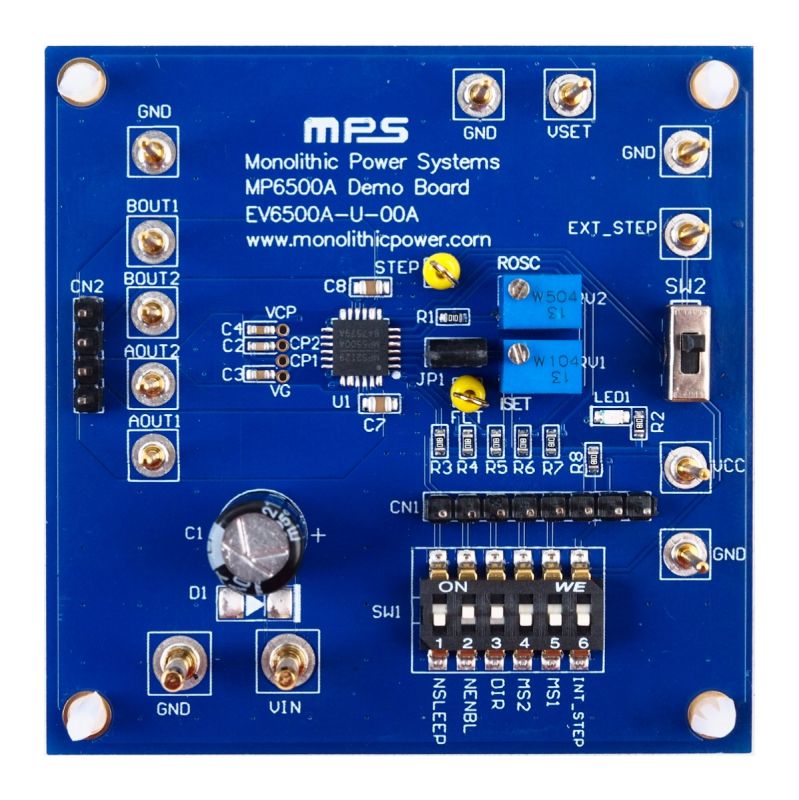

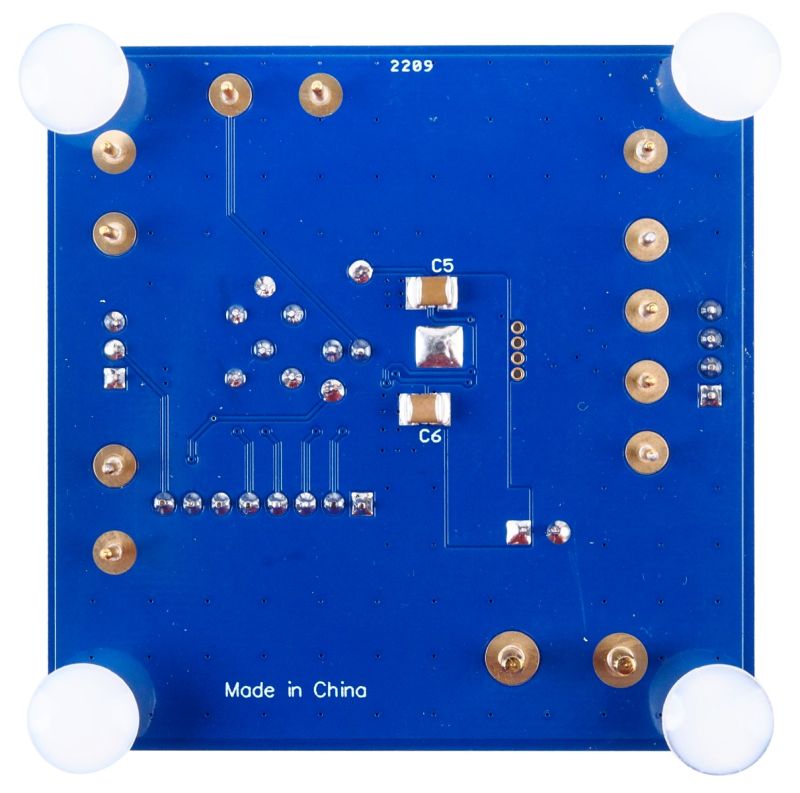

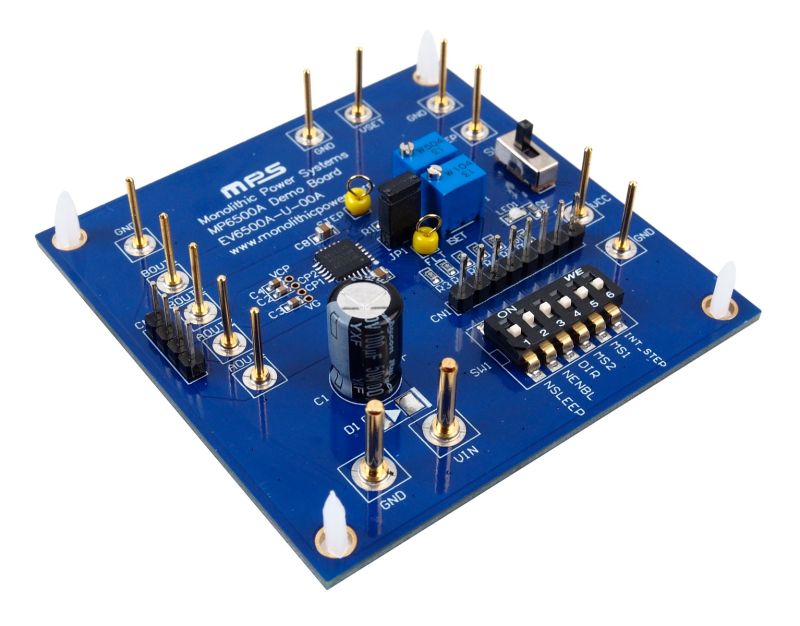

The EV6500A-U-00A is an evaluation board designed to demonstrate the capabilities of the MP6500A, a stepper motor driver with a built-in, microstepping translator.

The MP6500A operates from a supply voltage of up to 35V and can deliver a motor current of up to 2.5A. It can operate a bipolar stepper motor in full-, half-, quarter-, and eighth-step modes by setting the MS2 and MS1 pins. The input control signals for the MP6500A are applied through the connector or generated on the board.

The MP6500A is available in a QFN-24 (5mmx5mm) package. It is recommended to read the MP6500A datasheet prior to making any changes to the EV6500A-U-00A.
