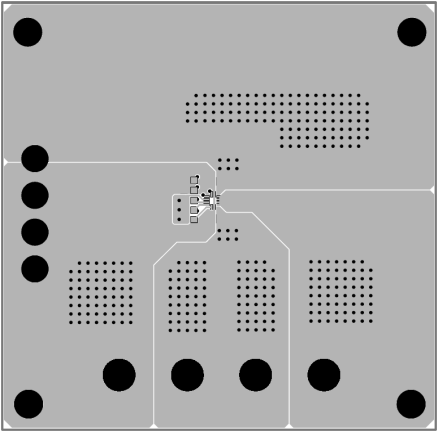

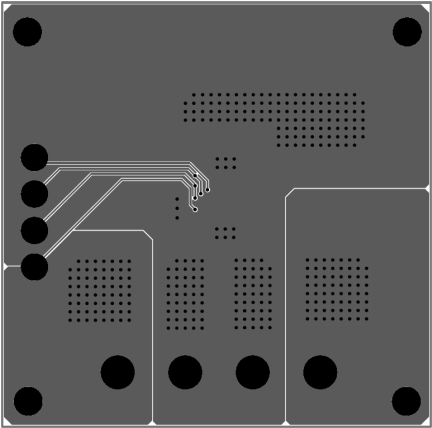

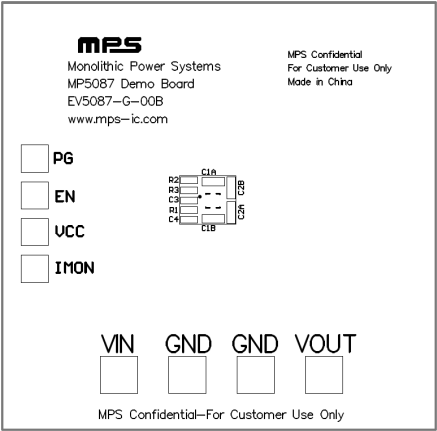

The EV5087-G-00B is an evaluation board designed to demonstrate the capabilities of the MP5087, a low R_DS(ON) load switch with current monitoring.

The MP5087 is a load switch designed to provide 7A of load protection across a 0.5V to 5.5V input voltage (V_IN) range. With the low R_DS(ON) in a tiny package, the MP5087 provides a very high-efficiency and space-saving solution for notebooks, tablets, and other portable applications.

The MP5087 is equipped with a very accurate current monitoring function. The gain of the current monitor can be scaled to different applications. With the soft start function, the MP5087 can avoid inrush current during circuit start-up. The MP5087 also provides other features, such as power good, output discharge function, and fast short-circuit protection (SCP) response time.

The EV5087-G-00B can deliver a continuous 7A of load current across a 0.8V to 5.5V operating V_IN range.
