EV4432-L-00A

36V, 2.2A, Low Quiescent Current Synchronous Step-Down Converter Evaluation Board

EV4432-L-00A

36V, 2.2A, Low Quiescent Current Synchronous Step-Down Converter Evaluation Board

EV4432-L-00A continues to be in production for existing customers. Please consider this alternative for new designs:

EVQ4432-L-00A

Active

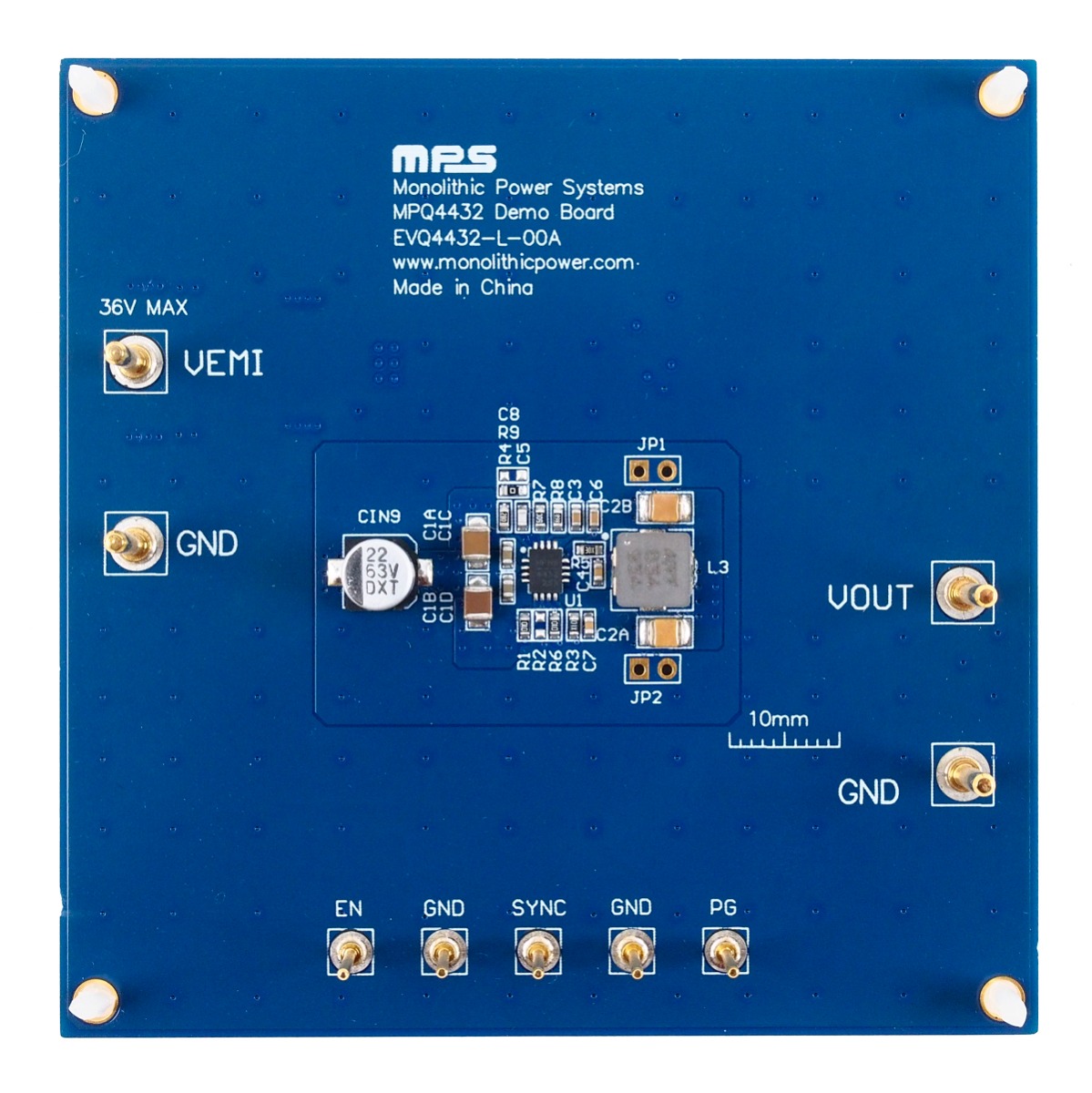

EVQ4432-L-00A

Active

36V, 2.2A, Low Quiescent Current, Synchronous Step-Down Converter Evaluation Board

Features & Benefits

  • Wide 5V to 36V Operating Input Voltage (VIN) Range
  • 2.2A of Continuous Output Current (IOUT)
  • 1μA Low Shutdown Mode Current
  • 10μA Sleep Mode Quiescent Current
  • Internal 90mΩ High-Side MOSFET (HS-FET) and 40mΩ Low-Side MOSFET (LS-FET)
  • 350kHz to 2.5MHz Configurable Switching Frequency (fSW)
  • Synchronize to External Clock
  • Selectable In-Phase or 180° Out-of-Phase
  • Power Good (PG) Indicator
  • Configurable Soft-Start Time
  • 80ns Minimum On Time
  • Selectable Forced Continuous Conduction Mode (FCCM) and Advanced Asynchronous Modulation (AAM) Mode
  • Low-Dropout Mode
  • Over-Current Protection (OCP) with Valley-Current Detection and Hiccup Mode
  • Thermal Shutdown
  • Available in a QFN-16 (3mmx4mm) Package
  • Available in a Wettable Flank Package
  • Available in AEC-Q100 Grade 1

… and many more!

Product Evaluated

Active Part Numbers:

EV4432-L-00A
