36V, 1A, Low Quiescent Current Synchronous Step-Down Converter Evaluation Board

ALTERNATIVE PART

Datasheet

EV4431-L-00A continues to be in production for existing customers. Please consider this alternative for new designs:

EVQ4431-L-00A

36V, 1A, Low I_Q, Synchronous Step-Down Converter Evaluation Board

Features & Benefits

Wide 3.3V to 36V Operating Input Voltage Range
1A of Continuous Output Current
1μA Low Shutdown Current (I_SD)
10μA Sleep Mode Quiescent Current (IQ)90mΩ/80mΩ Internal Power MOSFETs
350kHz to 2.5MHz Configurable Switching Frequency (f_SW)
Synchronized External Clock
Selectable In-Phase or 180° Out-of-Phase
Power Good (PG) Indicator
Configurable Soft-Start Time (t_SS)
80ns Minimum On Time (t_{ON_MIN})
Selectable Forced Continuous Conduction Mode (FCCM) and Advanced Asynchronous Modulation (AAM) Mode
Low-Dropout (LDO) Mode
Over-Current Protection (OCP) with Valley Current Detection and Hiccup Mode
Thermal Shutdown
Available in a QFN-16 (3mmx4mm) Package
Available with Wettable Flanks
AEC-Q100 Grade-1 Qualified

… and many more!

Description

The EV4431-L-00A is an evaluation board for the MP/MPQ4431GL.

MP/MPQ4431GL is a frequency programmable (350kHz to 2.5MHz), synchronous, step-down, switching regulator with integrated internal high-side and low-side power MOSFETs. It provides up to 1A highly efficient output current with current mode control for fast loop response.

The MP/MPQ4431GL employs AAM (Advanced Asynchronous Modulation) mode which helps to achieve high efficiency at light load condition by scaling down the switching frequency to reduce the switching and gate driving losses.

The EV4431-L-00A is a fully assembled and tested evaluation board, it generates +3.3V output voltage at load current up to 1A from a 3.3V to 36V input range.

Product Evaluated

Features & Benefits

Wide 3.3V-to-36V OperatingInputRange
1A Continuous Output Current
1μA Low Shutdown Mode Current
10μA Sleep Mode Quiescent Current
Internal 90mΩ High-Side and 80mΩ Low-Side MOSFETs
350kHz to 2.5MHz Programmable Switching Frequency
- Synchronize to External Clock
Selectable In-Phase or 180° Out-of-Phase
Power Good Indicator
- Programmable Soft-Start Time
- 80ns Minimum On Time
- Selectable Forced CCM and AAM
- Low Dropout Mode
- Over-Current Protection with Valley-Current Detection and Hiccup
- Thermal Shutdown
- Available in Wettable Flank
- Available in AEC-Q100 Grade-1
- Fully Assembled and Tested

Active Part Numbers:

EV4431-L-00A

Buy direct from MPS

EV4431-L-00A

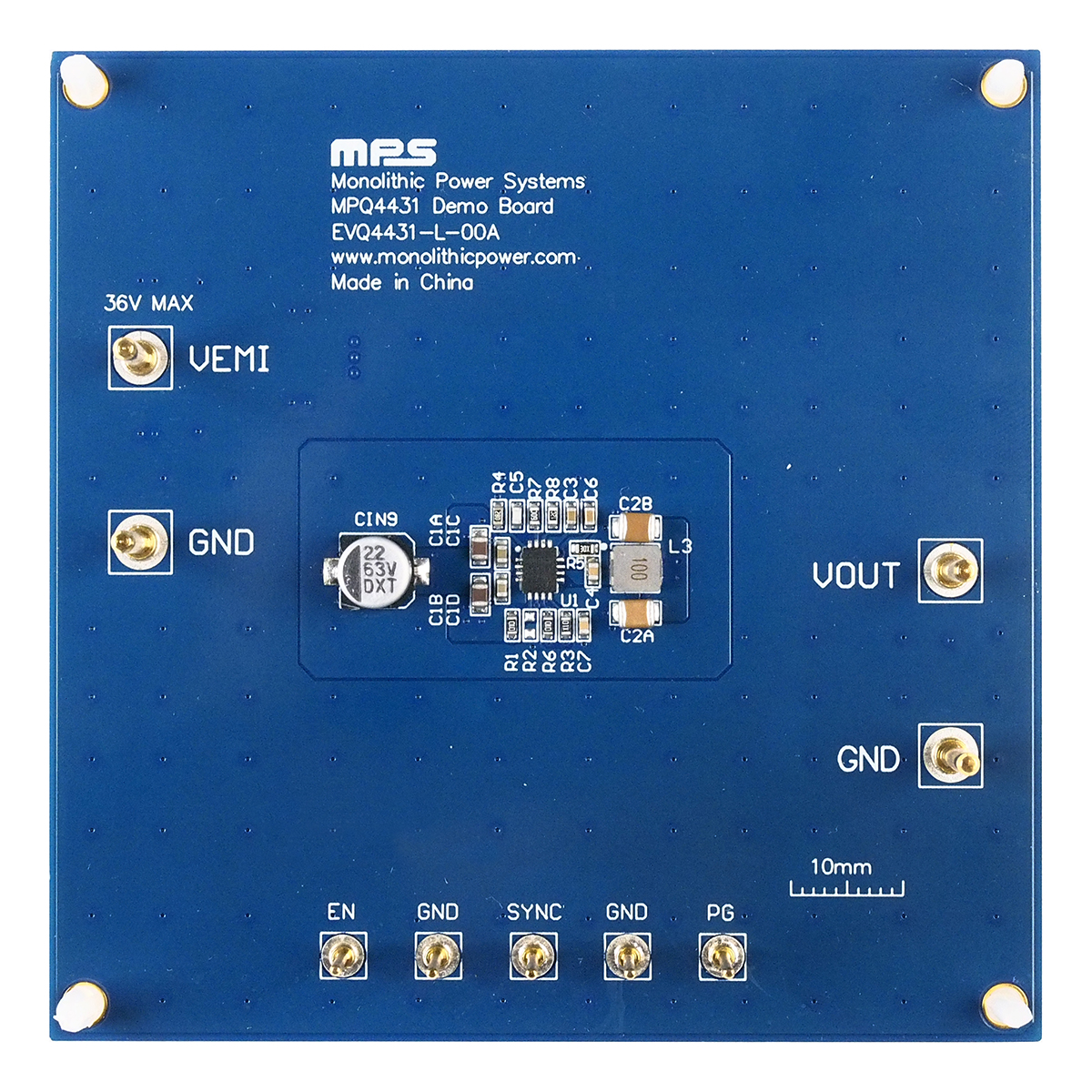

EVQ4431-L-00A
