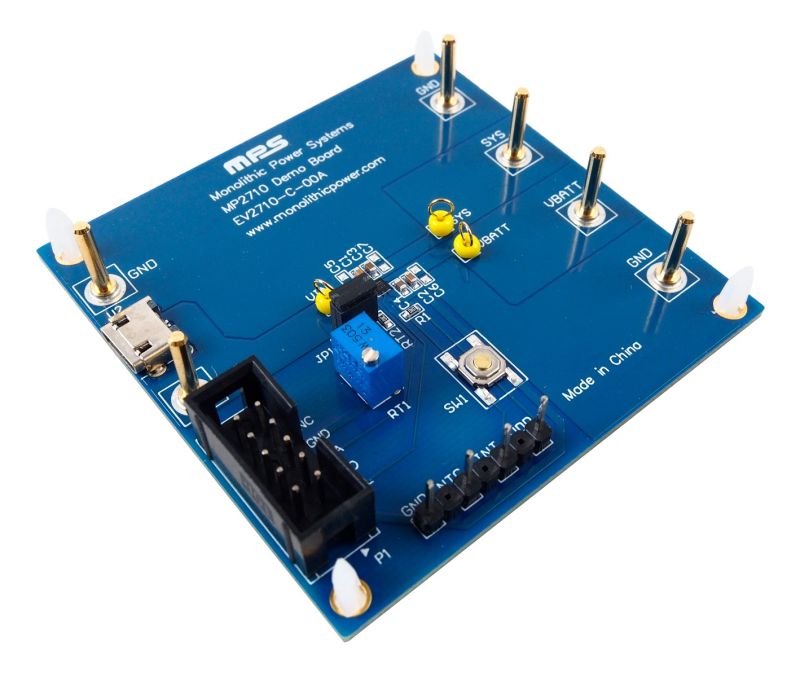

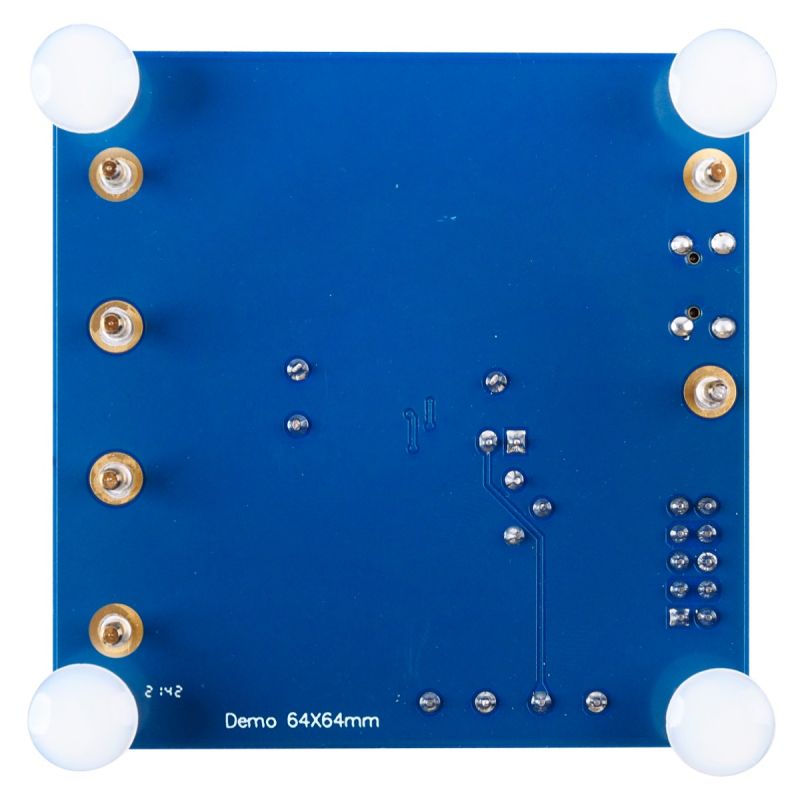

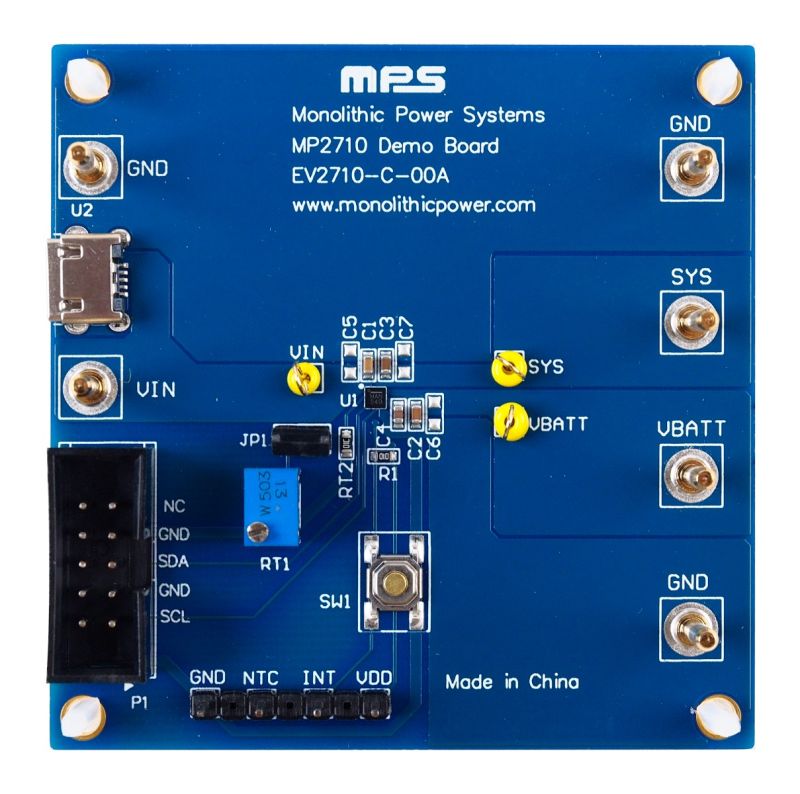

The EV2710-C-00A evaluation board is designed to demonstrate the capabilities of the MP2710, a highly integrated, single-cell Li-ion/Li-polymer battery charger with system power path management. It is ideal for portable, space-constrained applications.

The MP2710 takes input power from either an AC adapter or a USB port to supply the system load and charge the battery simultaneously. It also features pre-charge (PRE.C), constant current (CC) fast charge, and constant voltage (CV) regulation, as well as charge termination and auto-recharge. The power path management function ensures continuous power to the system by automatically selecting the input, battery, or both to power the system.

The MP2710 provides short-circuit protection (SCP) to prevent the Li-ion battery from damage due to excessively high currents. The MP2710 also provides an on-chip battery under-voltage lockout (UVLO) threshold that cuts off the path between the battery and the system if the battery voltage (V_BATT) drops below the configurable UVLO threshold. This prevents the Li-ion battery from being over-discharged.

The integrated I²C interface can configure the following charging parameters: input current limit (I_{IN_LIM}), input voltage (V_IN) regulation limit, charging current, battery regulation voltage (V_{BATT_REG}), safety timer, and battery UVLO threshold.

The MP2710 is available in a WLCSP-9 (1.85mmx1.85mm) package.
