EV175-S-00A

EV175-S-00A

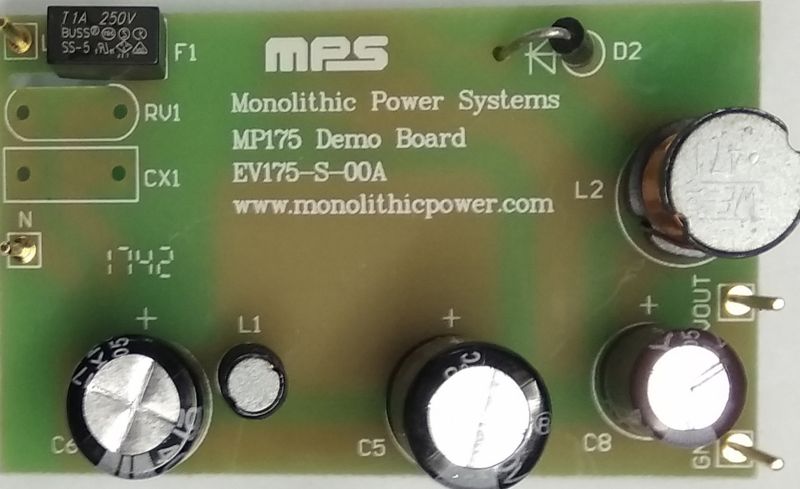

MP175 Buck Regulator Evaluation Board, Universal Input, 10W Output

Datasheet

Description

The EV175-S-00AEvaluation Board is designed to demonstrate the performance of MP175. The MP175 is a high performance and cost effective primary-side constant voltage regulator, which is ideal for home appliances, standby power and etc.

The EV175-S-00A is configured as a buck topology. It delivers 18V/550mA output.

The EV175-S-00A has an excellent efficiency and meets 1kV IEC61000-4-5 surge immunity and EN55022 conducted EMI requirements. It has multi-protection function: such as open circuit protection, over load protection, short-circuit protection and over-temperature protection, etc.

Product Evaluated

Features & Benefits

Primary-Side non-isolated Constant Voltage Control (CV)
Integrated 700V MOSFET with Minimal External Components
Peak-Current Control with Peak Current Compression
Limited Maximum Frequency and Frequency Foldback
Multiple Protections: SCP, OLP, OTP, open loop and VCC UVLO
Low Cost and Simple External circuit

Active Part Numbers:

EV175-S-00A

Buy direct from MPS

Standard Pricing

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days. Shipping only $5 per order.

Quantity

100 Max per Company.
Limited Inventory to support product development.
