0.4W, Regulated, 3V_DC Isolated DC/DC Converter Evaluation Board

Description

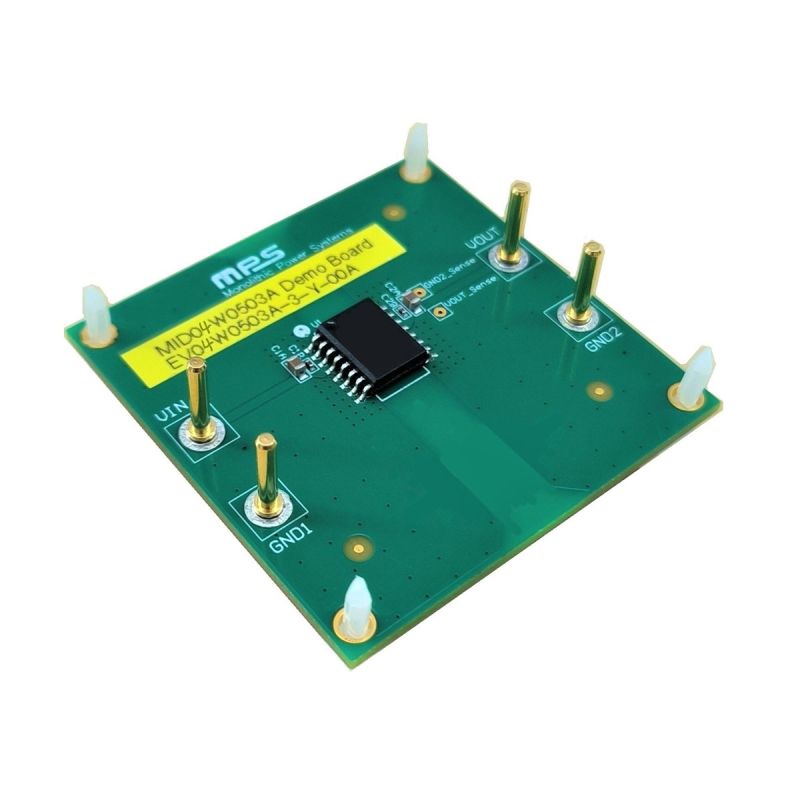

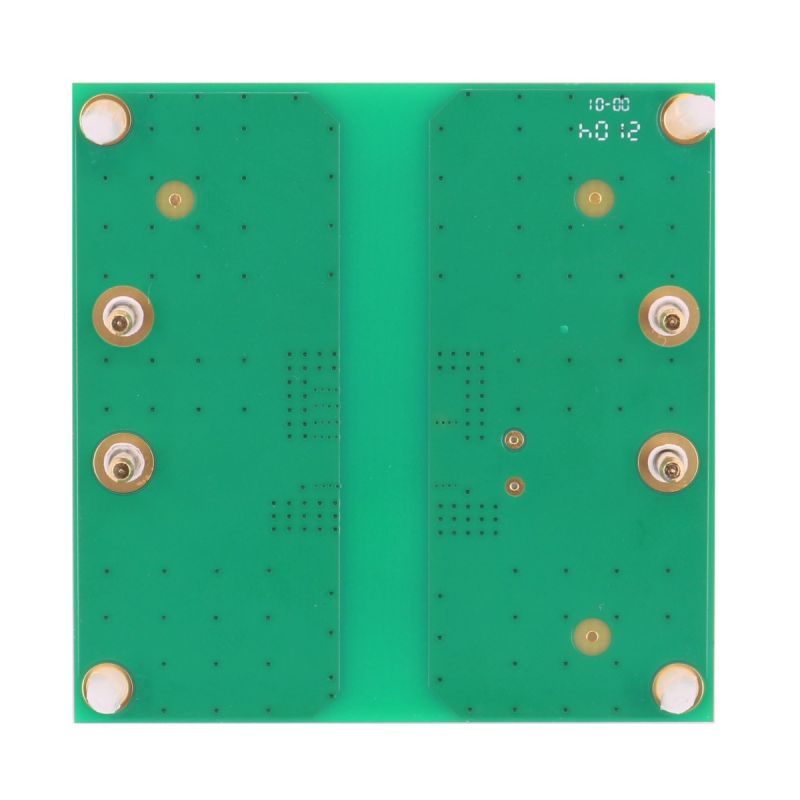

The EV04W0503A-3-Y-00A is an evaluation board designed to demonstrate the capabilities of the MID04W0503A-3, a regulated, isolated DC/DC converter. The MID04W0503A-3 supports a 3kV_DC isolation voltage.

The MID04W0503A-3 integrates a power MOSFET, transformer, and feedback circuit all in one chip. The DC/DC converter provides a compact solution with reliable operation compared to traditional isolated power modules.

It is recommended to read the datasheet for the MID04W0503A prior to making any changes to the EV04W0503A-3-Y-00A.

Product Evaluated

MID04W0503AGY-3R

0.4W, Regulated, 3V_DC Isolated DC/DC Converter

Features & Benefits

4.5V to 5.5V Operating Input Voltage (V_IN) Range
3kV_DC Isolation Voltage
Up to 0.4W Output Power (P_OUT)
38% Max Efficiency with Full Loads
0.3% Load Regulation
0.1% Line Regulation
Excellent Transient Resposne
Continuous Short-Circuit Protection (SCP) with Hiccup Mode
Over-Temperature Protection (OTP)
Meets CISPR32 Class B Emissions
CB Certification According to IEC62368-1 (In Process)
-40°C to +125°C Operating Temperature Range
Available in an SOICW-16 Package

Active Part Numbers:

EV04W0503A-3-Y-00A

Buy direct from MPS

Quantity Price
1

$25.00 /unit

In stock

Arrives 3-4 business days.
Shipping only $5 per order.
