Battery Pack Complete Solution GUI

Battery Pack Complete Solution GUI

This complete battery pack solution GUI can be used to configure and evaluate BMS and fuel gauge solutions.

Description

This GUI allows the user to configure and evaluate the complete battery pack solutions using the MP278x or MP279x battery monitors and protectors, as well as the MPF4279x fuel gauges.

Hardware and Software Requirements:

One available USB port
At least 256.9MB of free space (plus 113MB installer file)
>800MHz Processor
512MB RAM
DirectX 9 Capable Graphics Adapter

Features & Benefits

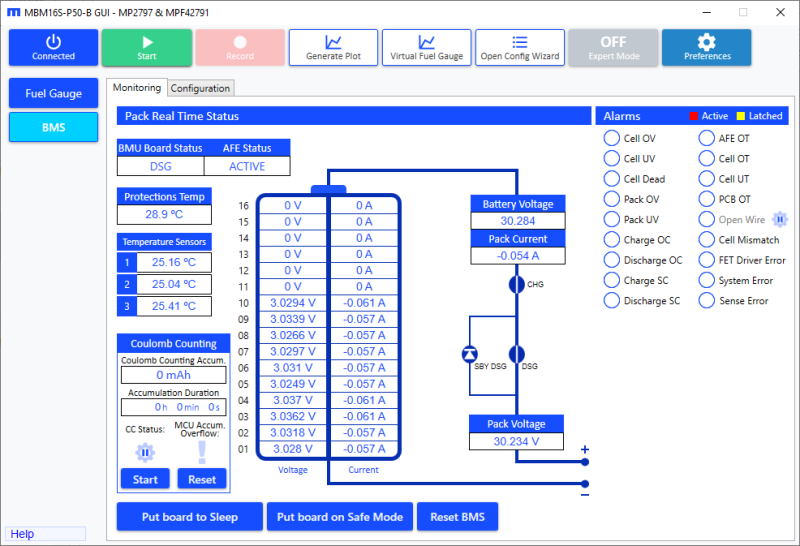

Monitors and Displays Real-Time Data:
- Battery and Cell Voltages
- Current
- Temperatures
- State-Of-Charge (SOC)
- Fuel Gauge Learnings
- Remaining Charge and Discharge Estimates
- Alarms
- Board Status
Records All Monitored Data to a .csv File

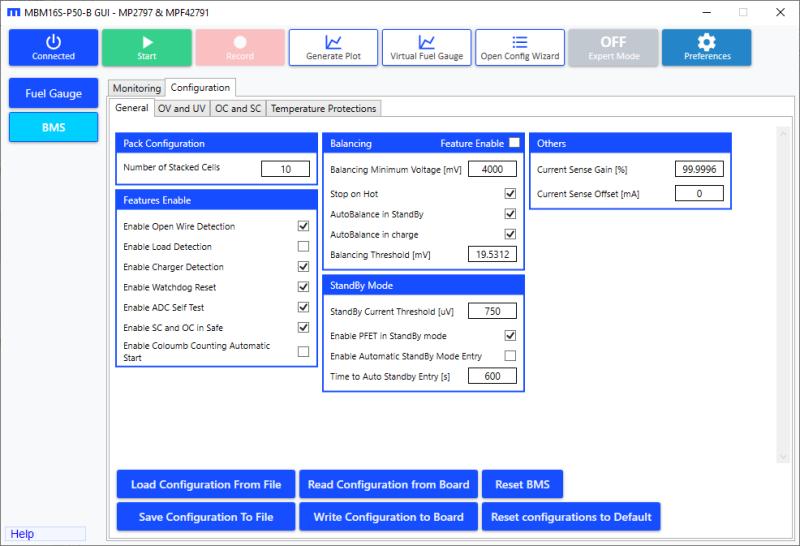

Simple Configuration of the Devices with Options to Import and Export Configuration Files

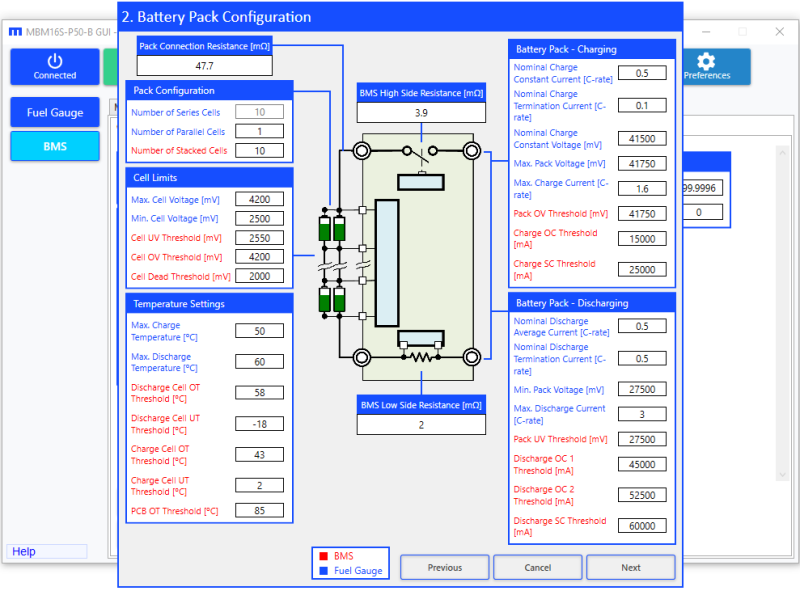

Comprehensive Description of All Configuration Parameters with a Configuration Wizard to Show Main Configuration Parameter Roles
Basic and Expert Modes for Simpler Fuel Gauge Configuration

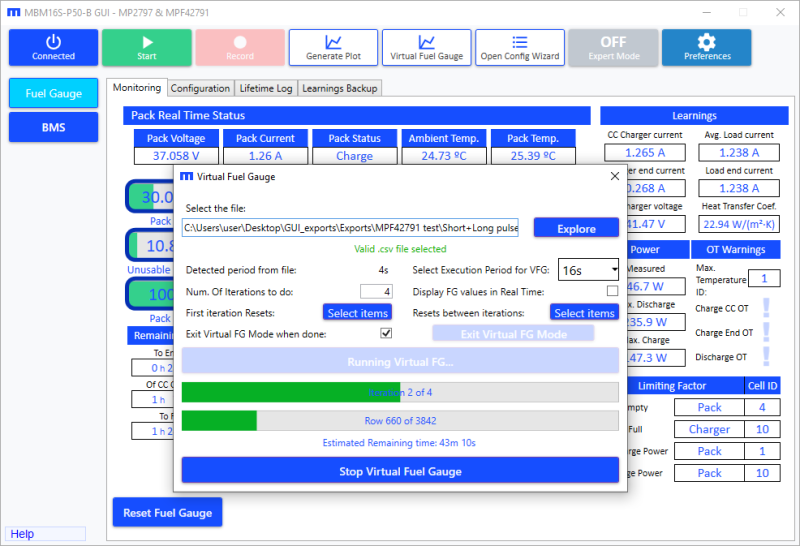

Virtual Fuel Gauge to Run a Recorded Test Again for the Fuel Gauge IC Using a Different Configuration without Testing the Battery Again
Plotting Tool to Generate Plots from a Recorded .csv File
Automatic Detection Option for the Monitor and Fuel Gauge ICs In Use
Reads and Exports the Fuel Gauge’s LifeTime Log Registers
Reads, Writes, Imports, and Exports the Fuel Gauge’s Learning Values
Automatic Check for GUI Updates and Cell Profile Database Updates for the Fuel Gauge
