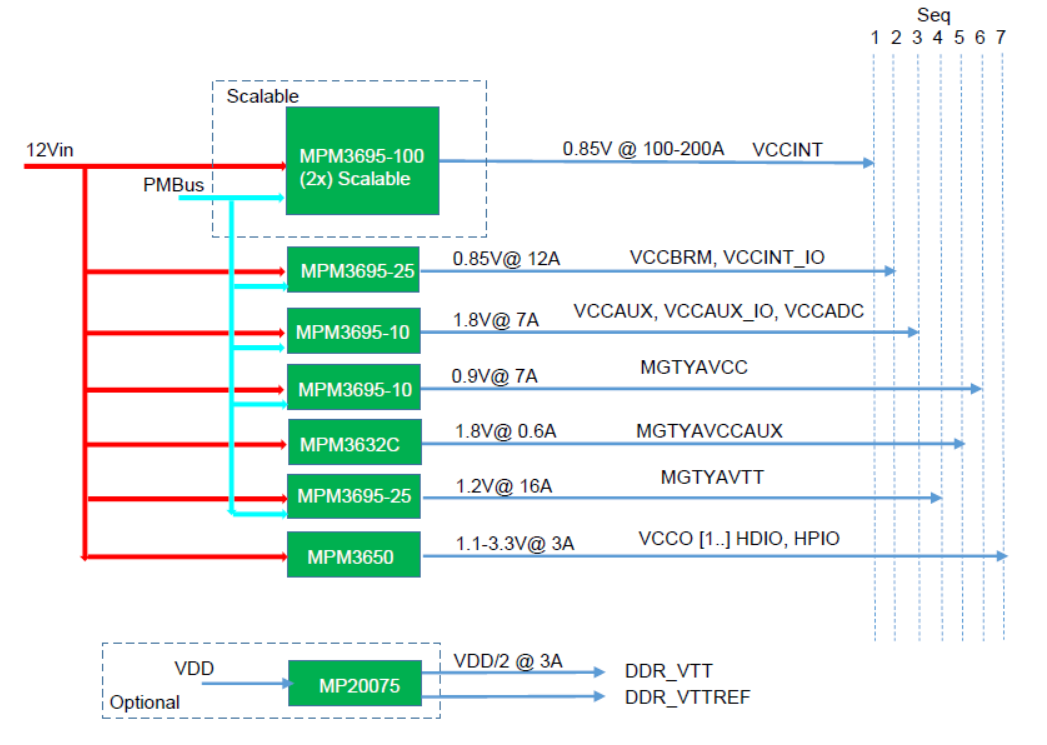

VU19P UltraScale+ Extended Portfolio Smallest Size Power Management Reference Design

For more information on reference designs

Contact Us

Response within 2 business days

Xilinx part numbers

  • XCVU19P

                                                                                                                                                                                                                                                                        EVXLVU-19B


MPS Products Used

Part Number Quantity Description
MPM3695-100

1 for 100A;

2 for 200A

100A, Scalable, and Fully Integrated DC/DC Power Module with a PMBus interface
MPM3695-25 2 16V, 20A, Scalable DC/DC Power Module with PMBus
MPM3695-10 2 14V, 10A, Scalable, Digital, Synchronous, Step-Down Module with I2C/PMBus Interface and Parallelable for High Output Current
MPM3632C 1 18V Input, 3A Module, Synchronous, Forced CCM, Step-Down Converter with Integrated Inductor
MPM3650 1 1.2MHz Synchronous 2.75 - 17V, 5A Ultra-Thin Power Module
MP20075 1 3A, DDR Termination Regulator
