TBMA734-Q-LT-00A

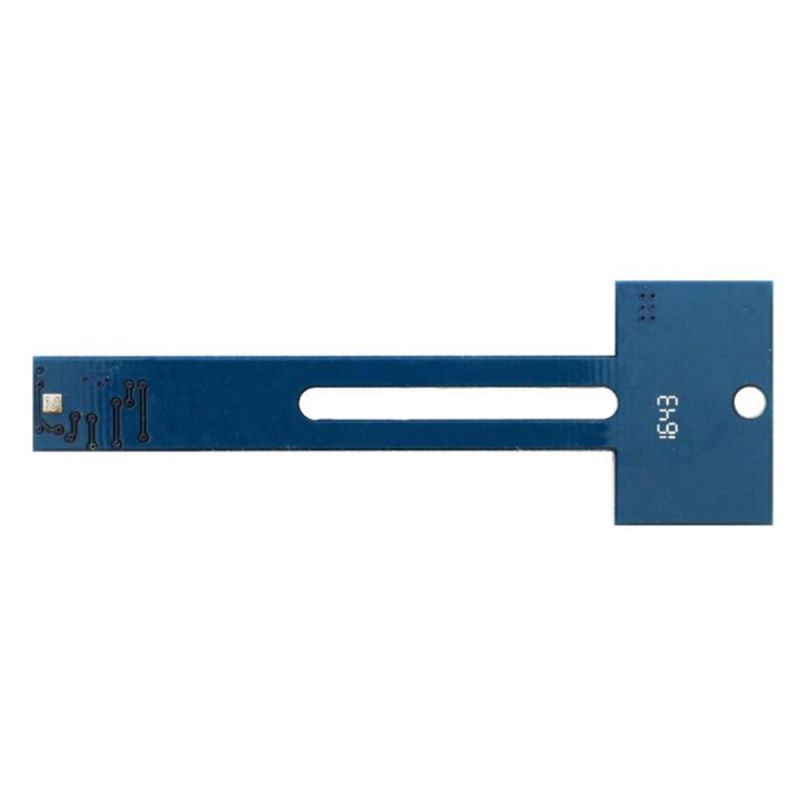

The TBMA734-Q-LT-00A is the long evaluation board for the MA734 MagAlpha magnetic position sensor. The sensor is mounted on the edge of the board, and can therefore be used in both side-shaft and end-of-shaft configurations.

It requires the EVKT-MACOM communication kit and the Macom App Software to evaluate MagAlpha functionality and performance with the set-up, such as noise level, refresh rate, start-up time, and magnetic field dependence.

In addition to this long (LT) evaluation board, there is a round format (RD) version, in which the sensor is mounted in the center of the board for end-of-shaft configurations.
