MP7742
NOT RECOMMENDED FOR NEW DESIGNS
MP7742 continues to be in production for existing customers. Please consider this alternative for new designs:
MP7745
MP7745
2 x 20W Class D Stereo
Single Ended Audio Amplifer
Features & Benefits
- 2 x 20W Output at VDD = 24V into 4Ω load
- THD+N = 0.05% at 1W, 8Ω
- 93% Efficiency at 20W, 4Ω & VDD = 24V
- Low Noise (103µV Typical)
- Switching Frequency Up to 1MHz
- 9.5V to 26V Operation from a Single Supply
- Integrated Startup and Shutdown Pop Elimination Circuit
- Thermal and Short Circuit Protection
- Integrated Power FETs
- Pin Compatible with MP7722 and MP7742
- Available in TSSOP20-Exposed Package
… and many more!
Active Part Numbers:
MP7742DF-LF-P MP7742DF-LF-Z
Meaning of P & Z
Evaluation Tools

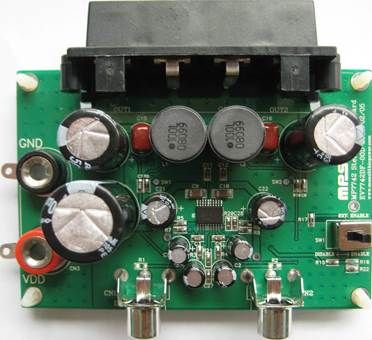

EV7742DF-00D Evaluation Kit 2x15W Stereo Class-D Single Ended Audio Amplifier EV Board
The EV7742DF-00D is the evaluation board for the MP7742, a stereo 15W Class D Audio Amplifier. It is one of MPS’ products of fully integrated audio amplifiers which dramatically reduces solution size by integrating the following:
- 250mΩ power MOSFETs
- Startup / Shutdown pop elimination
- Short circuit protection circuits
The MP7742 utilizes a single ended output structure capable of delivering 2x15W into 4Ω speakers. MPS Class D Audio Amplifiers exhibit the high fidelity of a Class A/B amplifier at high efficiency. The circuit is based on the MPS’ AAMTM proprietary variable frequency topology that delivers excellent linearity, fast response time and operates on a single power supply.
