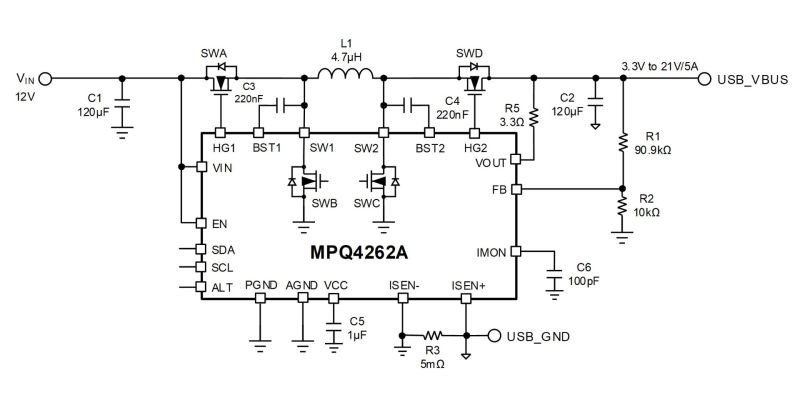

The MPQ4262A-AEC1 is a buck-boost converter with two integrated low-side MOSFETs (LS-FETs). The device can deliver up to 100W of peak output power (POUT) at certain input voltage (VIN) supply ranges with excellent efficiency.
The MPQ4262A-AEC1 is well-suited for USB power delivery (PD) applications and can work with an external USB PD controller through the I2C interface. The I2C interface and one-time programmable (OTP) memory provide flexibility for configurable features.
Fault condition protections include constant-current (CC) limiting, output over-voltage protection (OVP), and thermal shutdown (TSD).
The MPQ4262A-AEC1 requires a minimal number of readily available, standard external components, and is available in a QFN-20 (3mmx5mm) package.
