MP8352

3V-6V Input, 6A, 600kHz Step-Down Converter with Synchronizable Gate Driver

MP8352

NOT RECOMMENDED FOR NEW DESIGNS

3V-6V Input, 6A, 600kHz Step-Down Converter with Synchronizable Gate Driver

MP8352 continues to be in production for existing customers. Please consider this alternative for new designs:

MP2145GD-Z

Active

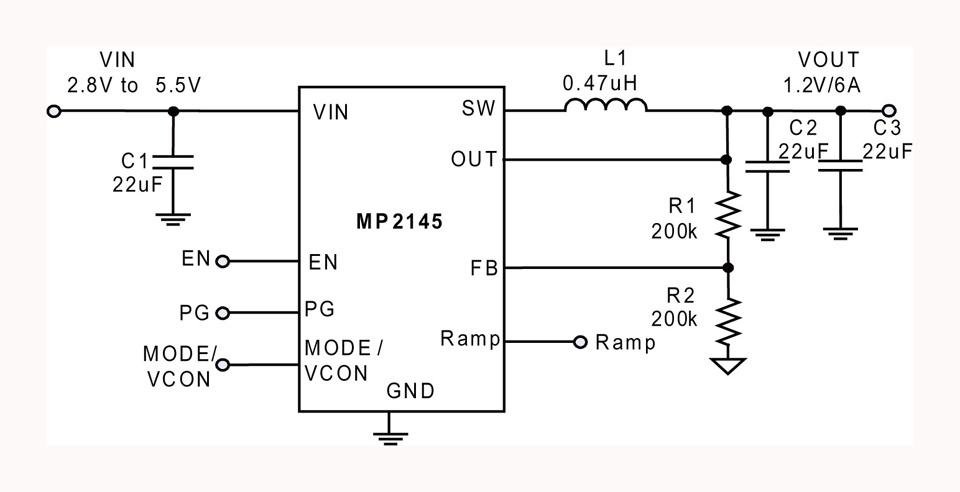

MP2145GD-Z

Active

5.5V, 6A, 1.2MHz, High-Efficiency, 40μA IConstant On-Time Synchronous, Step-Down Switcher

Features & Benefits

  • Up to 6A Output Current
  • Wide 2.8V-to-5.5V OperatingInputRange
  • 20mΩ and 12mΩ InternalPowerMOSFETs
  • 40µA Quiescent Current
  • 1.2MHz Fixed Switching Frequency
  • 100% Duty Cycle in Dropout
  • 1% Feedback Accuracy
  • External Mode Control
  • External VCON Control
  • Adjustable Output from 0.6V
  • 1.5ms Internal SS Time with Pre-Bias Startup
  • Cycle-by-Cycle Over Current Protection
  • Short Circuit Protection with Hiccup Mode
  • Stable with Low-ESR Output Ceramic Capacitors
  • Thermal Shutdown
  • Available in a 2mm×3mm QFN Package
  • Output Discharge Function

… and many more!

Active Part Numbers:

MP8352DL-LF-P MP8352DL-LF-Z

Meaning of P & Z Show more

Design Resources

Symbol, Footprint & 3D Model
30+ more formats Show more
Cad Symbols Symbols (36)
Cad Footprints Footprint (34)
Cad 3D Models 3D Models (15)

EDA model is not yet available for this part.

Please enter your email address and we will notify you when it is released.

Buy direct from MPS



Quality Policy, Certificates & Reliability Reports
All MPS parts are lead-free, halogen-free and adhere to the RoHS directive. See Environmental section for details.
